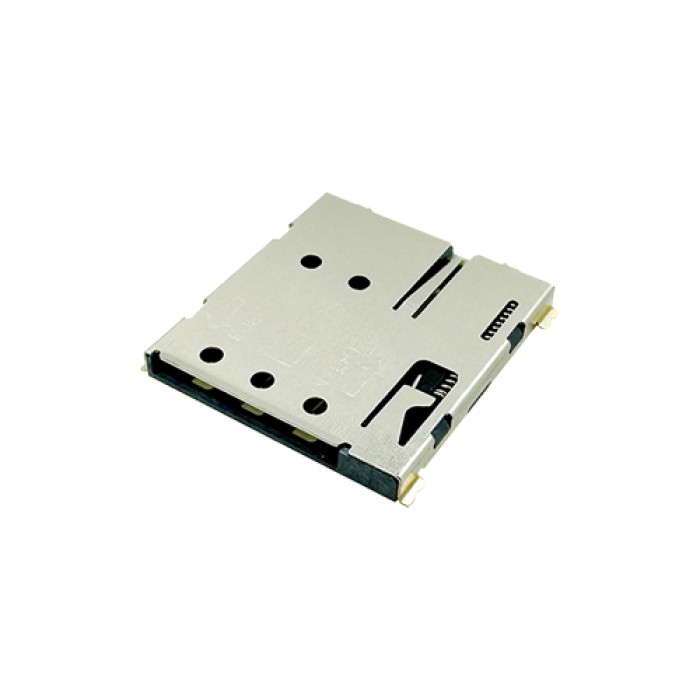

Nano SIM Card Connector Push-Push Height 1.35mm
Nano SIM Card Connector Push-Push Height 1.35mm
| Categories | Nano SIM Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | Nano SIM Card Connector（NS135-T1151-01） |
| Product Height | 1.35mm |
| Usable Memory Card | Nano sim card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 9,2025 |
Detail Information
Learn about Height 1.35 mm Nano SIM Card Connector
Nano SIM Card Connector
1.27mm Pitch Nano SIM Card Connector, Top Mount SMT Type, Push-Push Structure, 1.35mm Height
Advantage：
1. Push-push structure,easily insert or extract card.
2. Reliable detection switch pins, supports hot-plug function.
3. Ultra-thin design,offers more interior space savings for customers' products.
4. Compliant with RoHS and REACH certifications,meeting global market access standards.
Understand the Parameters of the Height 1.35 mm Nano SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
7
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication | |
Download
Detail Drawing of Height 1.35 mm Nano SIM Card Connector
