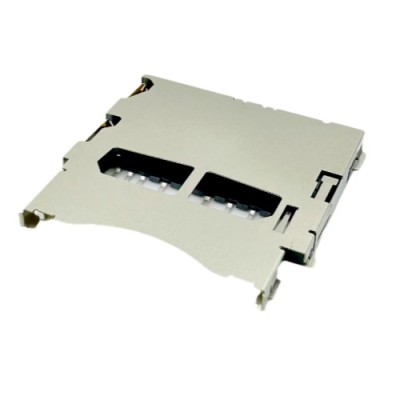

SD3.0 Card Connector Push-Pull Type Sink 1.35mm Bottom Mount Height 2.75mm
SD3.0 Card Connector Push-Pull Type Sink 1.35mm Bottom Mount Height 2.75mm
| Categories | SD 3.0 Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | SD Card Connector（SDE-D1250-11） |
| Product Height | 2.75mm |
| Usable Memory Card | SD 3.0 memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 9,2025 |
Detail Information
Learn about Height 2.75mm SD3.0 Card Connector
Secure Digital (SD) 3.0 Memory Card Connector
1.93mm Pitch SD3.0 Card Connector, Bottom Mount sink 1.35mm, DIP Type, Push-Pull structure, 2.75mm Height
Advantage：
1. All pins are DIP type, ensuring stronger soldering and higher resistance to mechanical stress.
2. Supports hot-plug, allowing the storage card to be recognized without restarting the device.
3.Thin and light weight, small size, optimized PCB space, Saving internal space for customers.
4.The product features a write-protect function to prevent accidental data modification or deletion.
Understand the Parameters of the Height 2.75 mm SD 3.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
11
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Short Type Small Size
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 2.75mm SD 3.0 Card Connector
