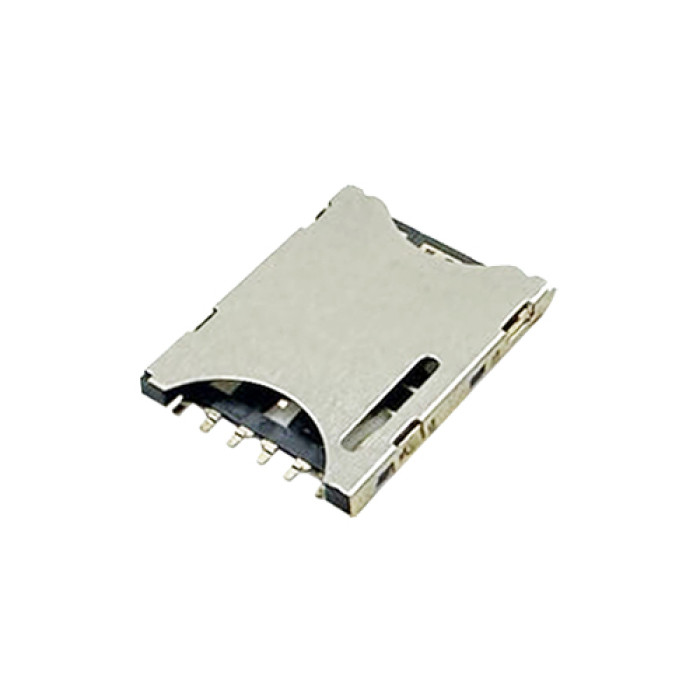

Nano SIM Card Socket Push-Pull Height 1.20mm
Nano SIM Card Socket Push-Pull Height 1.20mm
| Categories | Nano SIM Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | Nano SIM Card Connector（NS120-T1161-01） |
| Product Height | 1.20mm |
| Usable Memory Card | Nano SIM card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | May 29,2025 |
Detail Information
Learn about Height 1.20 mm Nano SIM Card Connector
Nano SIM Card Connector
1.27mm Pitch Nano SIM Card Connector, Top Mount SMT Type, Push-Pull structure, 1.20mm Height
Advantage：
1. Ultra-small design, offers more interior space savings for customers' products.
2. Push-pull structure,expediently insert and extract nano SIM cards.
3. The gold-plated contact design provides oxidation resistance and corrosion resistance, ensuring stable signal transmission.
4.Compliant with RoHS/REACH certifications, meeting global market access standards.
Understand the Parameters of the Height 1.20mm Nano SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication | |
Download
Detail Drawing of Height 1.20mm Nano SIM Card Connector
