Why Micro SD Card Connectors Matter in Modern Electronics？
Micro SD card connectors are essential interface components in today’s embedded systems, rugged devices, IoT products, and automotive platforms. As data storage and transfer demands escalate, the role of the connector — often overlooked — becomes critical for ensuring durability, performance, and long-term reliability.
At Moarconn, we specialize in custom Micro SD card connector solutions that deliver superior mechanical robustness and electrical performance. These capabilities are especially important in applications where standard off-the-shelf connectors fail under vibration, shock, or extreme temperature conditions
1. Mechanical Performance: Durability That Engineers Can Trust
1.1 Mating Cycles & Long-Term Reliability
One of the primary indicators of connector quality is mating cycles — the number of times a card can be safely inserted and removed before wear compromises contact integrity. Industrial and automotive environments often demand 5,000+ mating cycles.
Custom connectors from Moarconn are engineered with precision contact designs and reinforced housings to exceed standard lifetime expectations, delivering lasting reliability across repeated use

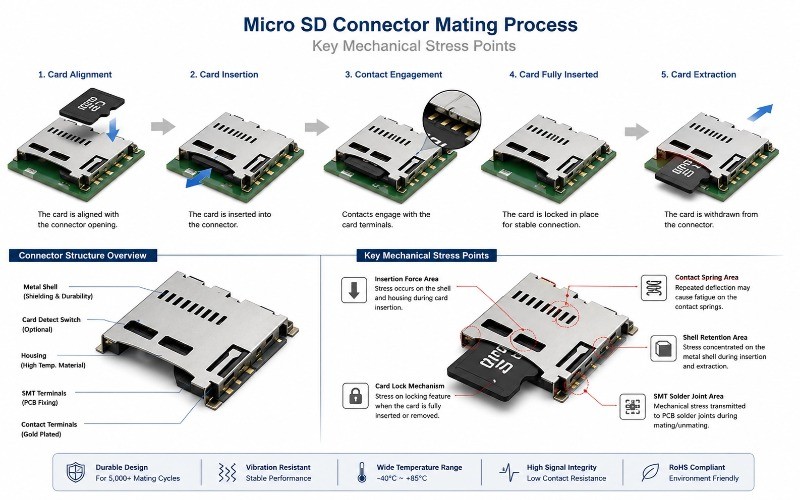

1.2 Mechanical Forces: Insertion & Withdrawal
Mechanical performance is directly correlated with insertion and withdrawal forces. Excessive force can lead to premature wear and user frustration, while too low force risks intermittent contact.
Moarconn’s custom connector designs balance these forces through optimized contact geometry and materials, ensuring smooth engagement and consistent reliability over product life.
2. Electrical Performance: Signal Integrity Under Pressure
2.1 Contact Resistance & Data Transmission
One of the key electrical performance metrics for Micro SD card connectors is contact resistance — the electrical resistance between the connector and the card pad. Lower contact resistance ensures strong signal transfer and sustained high data rates.
Custom micro SD connectors from Moarconn are manufactured with high-quality contact plating and optimized internal geometry to reduce resistance and enhance signal integrity.
2.2 Insulation Resistance & Voltage Handling
Industrial and automotive applications often require elevated insulation standards to withstand power fluctuations and environmental stress. Moarconn connectors are tested for high insulation resistance and rated to exceed the demands of harsh operating environments.
3. Designing for Harsh Environments: Lessons from Industry Leaders

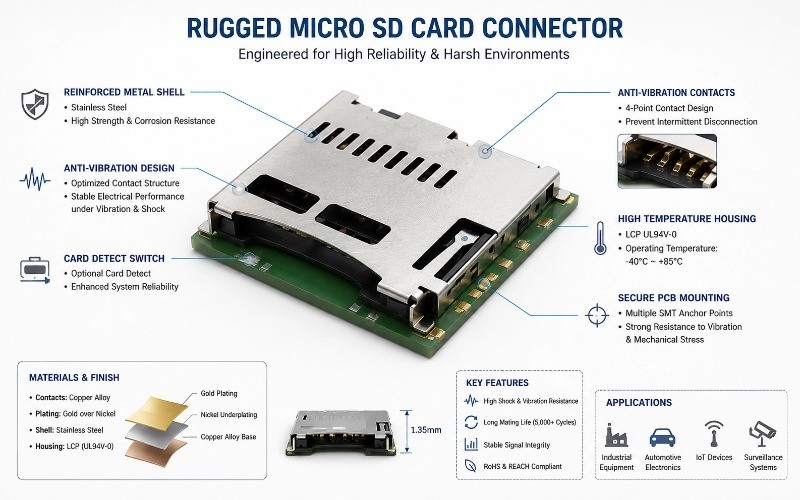

Electronic connectors must withstand complex environmental loads — including vibration, temperature extremes, humidity, and shock loads. According to industry benchmarks, connectors designed for harsh environments integrate reinforcement features such as:
Anti-vibration contact structures
Shock-resistant housings
Temperature-tolerant materials
At Moarconn, these principles are implemented in our custom solutions, with added engineering validation to ensure performance in real-world industrial and automotive scenarios — echoing insights from leading connector specialists.
External Authority Reference: Yamaichi Electronics highlights multiple connector designs with anti-vibration features for industrial use, reaffirming the importance of mechanical reinforcement in reliable connector solutions.
4. Industrial & Automotive Criteria for Connector Selection
Engineers working on industrial or automotive platforms prioritize connectors that exceed standard specifications. Key performance criteria include:
Wide Operating Temperature
Vibration & Shock Resistance
Mechanical Locking / Retention Features
PCB Mounting Robustness
According to published guidelines from trusted sources, reliable connector designs for these markets must balance mechanical and electrical parameters while satisfying rigorous certification testing.
Moarconn custom connectors are available in configurations optimized for both surface mount and through-hole assembly, with enhanced board retention and reinforced solder joints for elevated reliability.
5. Material Selection & Engineering Considerations
Material science plays a crucial role in connector performance:
Contact Materials: Gold or palladium alloys for low resistance and corrosion resistance
Housing Materials: High-temperature engineered plastics (e.g., LCP)
Plating Techniques: Nickel underplate with high-performance gold flash
Moarconn partners with top material vendors and internal quality processes to ensure every connector meets stringent mechanical and electrical standards — supported by in-house quality control systems validated to industrial thresholds.
6. Testing & Quality Assurance: How We Validate Performance
To ensure Moarconn connectors perform as expected in the field, each custom design undergoes:
Mechanical fatigue testing
Thermal cycling
Signal integrity analysis

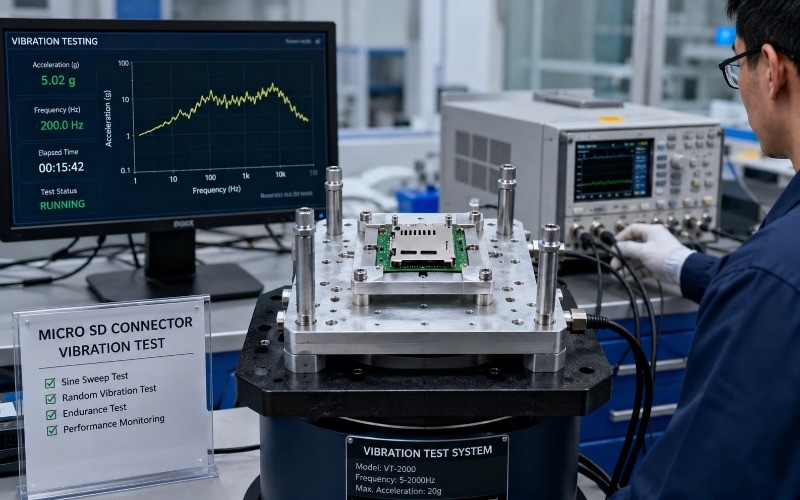

Vibration & shock screening
Our validation methods align with industry test standards and customer requirements, giving engineering teams confidence when integrating our connectors.
7. Applications: Where Custom Micro SD Card Connectors Make a Difference
Custom Micro SD card connectors are increasingly chosen in:
Industrial automation control systems
Automotive telematics & infotainment
Robotics and UAV flight controllers
Medical devices with long service life requirements
For each use case, Moarconn provides application support including layout recommendations, connector profiles, and long-term reliability data.
Conclusion: Engineer-Focused Connector Solutions from Moarconn
As embedded systems push the boundaries of performance and reliability, standard connectors often fall short under demanding conditions. Custom Micro SD card connectors — designed with robust mechanical and electrical performance — are key to sustaining long life and stable data transfer.
With decades of engineering experience and rigorous quality assurance, Moarconn is your partner for advanced Micro SD Card Connector solutions.
