A failure of a standard SD card connector in a smartphone or digital camera might be an inconvenience. However, in an automotive context—whether it’s used for dash cams, Advanced Driver-Assistance Systems (ADAS) data storage, or infotainment systems—a connector failure can lead to critical data loss, system malfunction, and even safety risks.

The automotive environment is the “ultimate testing ground” for electronic components: constant vibration, extreme temperature cycles (from -40°C to over +85°C), dust, humidity, and complex electromagnetic interference. Therefore, selecting an SD card connector for automotive applications should never be an afterthought; it must be a critical engineering decision made early in the design phase.

This article serves as your ultimate guide, delving into the core aspects of selecting automotive-grade SD card connectors and introducing how to collaborate with an expert partner like MoarConn, which brings over 20 years of industry experience, to tackle these challenges together.

Chapter 1: Understanding the Basics – Connector Types and Technology Evolution

Before selection, we need to establish a common technical understanding. An SD card connector is more than just a physical slot.

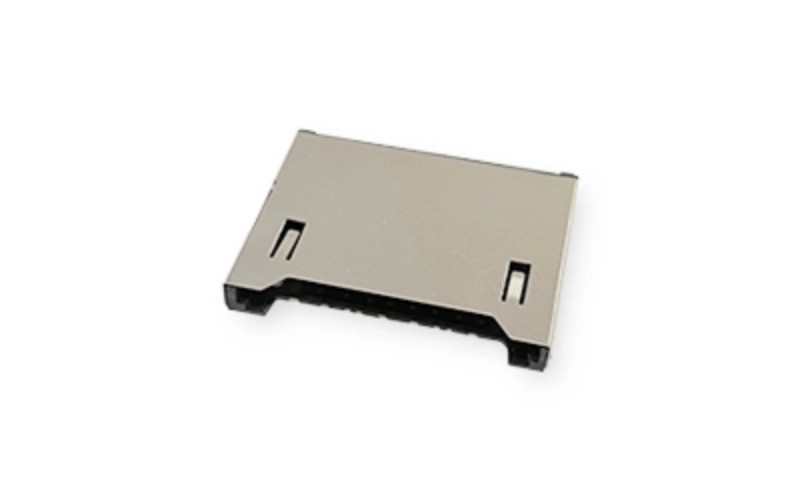

Form Factors and Insertion/Removal Mechanisms: Depending on spatial layout, you may need standard SD, microSD, or combo card holders. Mechanisms mainly include Push-in/Pull-out, Push-Push (spring-loaded ejection), and the Hinged (flip-lock) type designed for high-vibration environments. The latter provides more secure mechanical locking and is a priority for many automotive applications.

Contacts and Protocol Evolution: SD card technology has evolved from early standard speeds to support UHS-I, UHS-II, and the latest SD Express (using PCIe/NVMe interface). Protocol upgrades exponentially increase demands on the connector’s internal contact design and signal integrity. A connector supporting UHS-II or SD 7.0/8.0 has a fundamentally different internal pin layout and impedance control compared to a standard one.

This is the core of selection. You need to think like an automotive engineer.

Wide-Temperature Materials: The housing must be made of high-performance engineering plastics that can withstand long-term thermal cycling without deformation or cracking.

Corrosion-Resistant Plating: Contacts typically require thick gold plating to ensure stable, low-resistance electrical contact and prevent oxidation in humid environments over the long term.

Protective Design: Incorporating features like shock resistance, EMI shielding shells, and ESD protection—referencing leading industry designs—is crucial for ensuring the stable operation of automotive electronic systems.

 Rule 2: Defying Vibration and Shock – Mechanical Reliability

High Mating Cycle Life: Automotive devices may undergo thousands of data access cycles in their lifetime. The connector’s mating durability should far exceed consumer-grade products, typically requiring 10,000 cycles or more.

Reinforced Locking Mechanisms: Beyond the card’s own lock, how the connector is secured to the PCB is equally critical. Prioritize SMT models with additional mounting tabs or claws to prevent solder joint cracking under vibration.



Rule 3: Ensuring Signal Integrity – The Foundation of High-Speed Data Transfer

The Hidden Risks of High-Speed Design: When data rates enter UHS-II or SD Express territory, minor impedance discontinuities and pin length variations inside the connector can cause severe signal reflection and attenuation. This directly manifests as read/write errors and failure to meet speed specifications.

Parameters That Must Be Verified: As pointed out by testing experts like Allion Labs, it is essential to focus on high-frequency S-parameters such as Insertion Loss, Return Loss, and Crosstalk. When selecting a supplier, inquire whether their connector design complies with SD Association specifications and if they can provide or collaborate on relevant signal integrity test reports.

Rule 4: Adapting to Compact Spaces – Miniaturization and Flexible Layout

Space in automotive electronic modules is extremely limited. The connector’s height and footprint become hard constraints. An excellent automotive-grade connector should pursue an ultra-low profile and compact design while ensuring strength and functionality, and offer multiple mounting options (e.g., top or bottom mount) to adapt to complex PCB layouts.

Chapter 3: Beyond Selection – Co-creating Solutions with an Expert Partner

For automotive projects, selecting an off-the-shelf catalog product is often just the starting point. The real challenge lies in custom optimization based on your specific mechanical structure, thermal management, and signal chain.

At this stage, partnering with a connector manufacturer with deep experience and expertise becomes invaluable.

MoarConn has over 20 years of R&D and manufacturing experience in card connectors. Its service model perfectly aligns with the stringent demands for reliability and customization in automotive projects:

End-to-End Support from Concept to Mass Production: Whether you have just an idea, a physical sample, or complete design drawings, MoarConn can respond rapidly. They can provide 3D design and quotation within 48 hours and deliver first samples within 20 days, significantly shortening the development cycle.

Deep Co-design Capability: MoarConn’s engineering team not only manufactures connectors but also acts as an extension of your design chain. They can collaborate to optimize the connector’s structure, materials, and mounting method based on your device’s space constraints, thermal paths, or specific vibration frequencies, providing DFM reports to enhance manufacturability and reliability from the source.

Market-Proven Success Cases: For instance, MoarConn developed a high-strength, high-stability Micro SD card holder for a security surveillance equipment manufacturer. Such experience is directly transferable to equally demanding automotive recording applications. They also successfully developed an ultra-compact Nano SIM card holder for smartwatches, demonstrating their technical prowess in miniaturization and high-density interconnection.

Selecting an automotive-grade SD card connector is a systems engineering task that balances environmental endurance, mechanical life, signal performance, and spatial layout. We recommend you follow these steps:

1. Define Your Requirement List: List your temperature range, vibration standards, data speed, card type, installation space, and expected lifespan.

2. Screen Potential Suppliers: Prioritize suppliers that explicitly promote “automotive-grade” products and can provide detailed material and test specifications.

3. Engage in Technical Dialogue: Ask potential suppliers questions about their high-speed signal handling solutions, customization possibilities, and typical delivery cycles.

4. Build a Partnership: For critical automotive projects, consider establishing a long-term collaboration with an expert like MoarConn that offers one-stop customization capabilities. They can help translate the parameters on your selection checklist into a stable, reliable hardware solution perfectly adapted to your system.

Ultimately, the most reliable automotive-grade SD card connector is not just ‘selected’; it is ‘designed’ in collaboration with the right partner.
