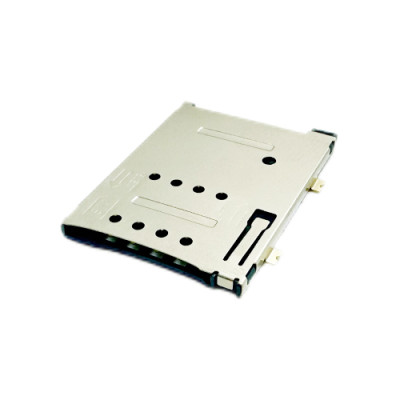

SIM Card Connector Push-Pull Top Mount Height 1.80mm
SIM Card Connector Push-Pull Top Mount Height 1.80mm
| Categories | Mini SIM Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | SIM Card Connector（SM180-T1251-01-W） |
| Product Height | 1.80mm |
| Usable Memory Card | SIM card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 9,2025 |
Detail Information
Learn about Height 1.80mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
2.54mm Pitch Mini SIM Card Connector,Top Mount SMT Type,Wtih Push-Pull Structure,1.80mm Height
Advantage：
1. Push-pull structure,it is easy to insert or extract SIM card for users.
2. Reversed shape design for terminals,make sure that it is a 5000 cycles durability.
3. Rigorous coplanarity control,ensure excellent soldering performance.
4. Compliant with RoHS and REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 1.80mm SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
100V DC
|
|
|
Contact Resistance:
|
50mΩ
|
|
|
Insulation Resistance:
|
100mΩ
|
|
Useful Life: | 1000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Tablet,Laptop,Smart Wearable,Smart Home,Automotive,Mobile Communication | |
Download
Detail Drawing of Height 1.80mm SIM Card Connector
