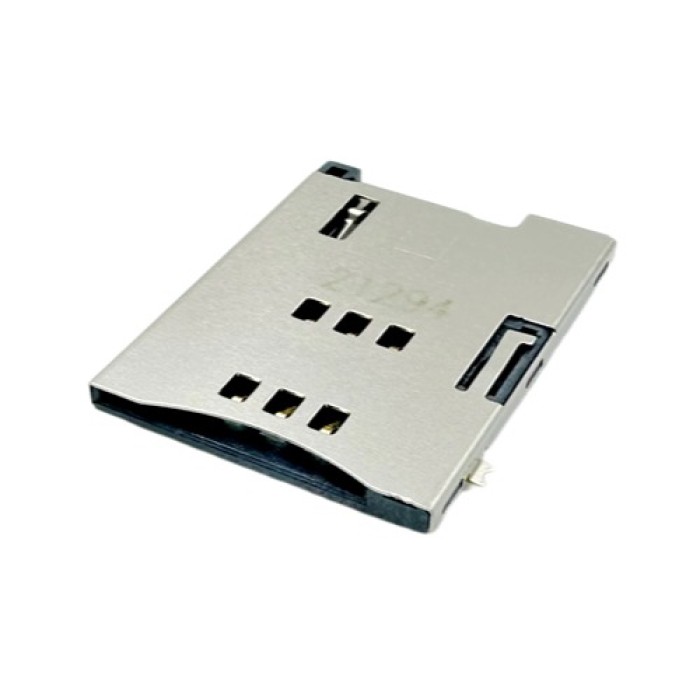

SIM Card Connector Push-Push Top Mount Height 1.80mm
SIM Card Connector Push-Push Top Mount Height 1.80mm
| Categories | Mini SIM Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | SIM Card Connector (SM180-T5153-02-W) (475532001) |
| Product Height | 1.80mm |
| Usable Memory Card | SIM card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 9,2025 |
Detail Information
Learn about Height 1.80mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
1.27mm Pitch Mini SIM Card Connector,Top Mount SMT Type,Push-Push Structure, 1.80mm Height
Advantage：
1. Push-push structure desing,easily insert or extract card for user.
2. Reliable detection switch pins,support hot-plug function.
3. Slope-shaped terminals, prevent terminals damage when the card is inserted and extracted.
4. Conform to RoHS and REACH standard,support global standard of market access.
Understand the Parameters of the Height 1.80mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
5.0 vrms
|
|
|
Contact Resistance:
|
100mΩ
|
|
|
Insulation Resistance:
|
500mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Smart Home,Router,Locator | |
Download
Detail Drawing of Height 1.80mm Mini SIM Card Connector
