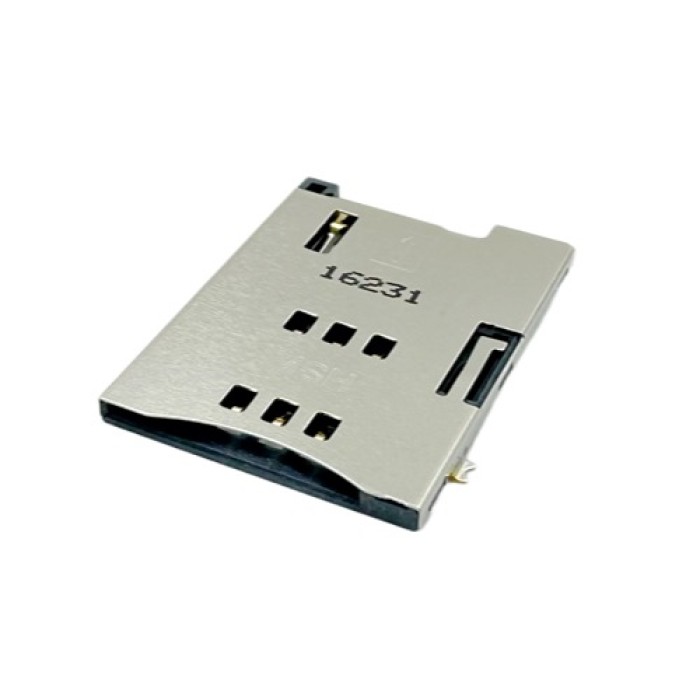

SIM Card Connector Push-Push Type Top Mount Height 1.80mm
SIM Card Connector Push-Push Type Top Mount Height 1.80mm
| Categories | Mini SIM Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | SIM Card Connector (SM180-T5153-01-W) (475530001) |
| Product Height | 1.80mm |
| Usable Memory Card | SIM card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 7,2025 |
Detail Information
Learn about Height 1.80mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
1.27mm Pitch Mini SIM Card Connector,Top Mount SMT Type,Push-Push Structure, 1.80mm Height
Advantage：
1. Push-push structure design,easily insert to or extract out the SIM cards for users.
2. Reliable detection switch pins, support hot-plug function.
3. Slope-shaped terminals, prevent terminals to be damaged when the card is inserted and extracted.
4. Stronger mechanical structure design,make sure 10000 cycles durable life.
Understand the Parameters of the Height 1.80mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
5.0 vrms
|
|
|
Contact Resistance:
|
100mΩ
|
|
|
Insulation Resistance:
|
500mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Tablet,Laptop,Smart Home,Automotive,Mobile Communication | |
Download
Detail Drawing of Height 1.80mm Mini SIM Card Connector
