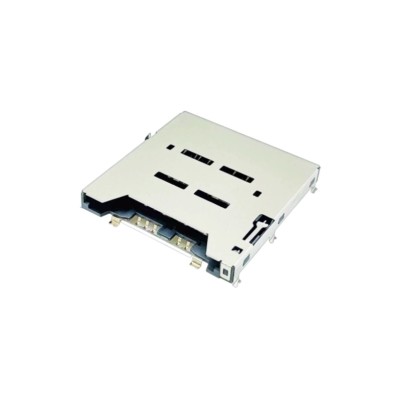

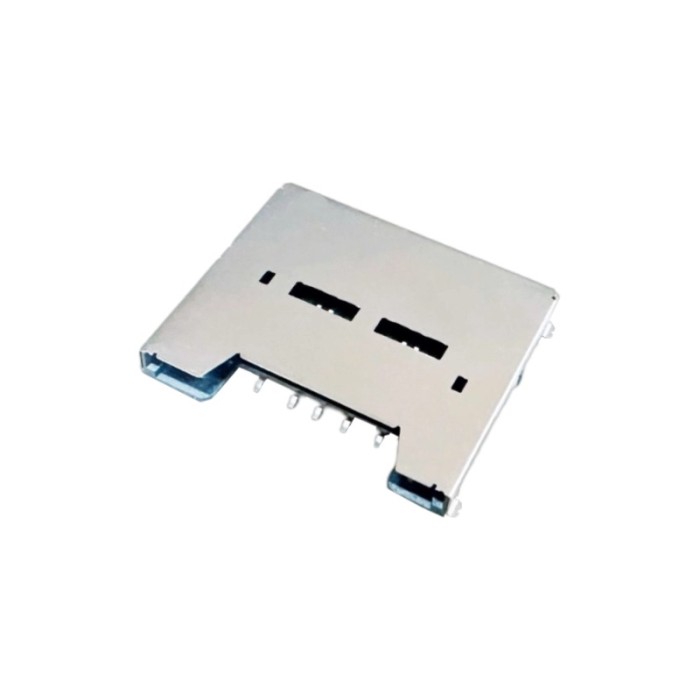

SD 8.0 Card Connector 4GB/s Top Mount Push-Pull Height 2.98mm
| Share | |
|---|---|
| Categories | SD 8.0 Card Connector |
| Brand | Moarconn Card Connector Manufacturer |
| Model | SD 8.0 Card Connector（SD298-T2250-03） |
| Product Height | 2.98mm |
| Usable Memory Card | SD 8.0/SD 7.0/SD 4.0/SD 3.0 memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Learn about Height 2.98mm SD 8.0 Card Connector
Secure Digital (SD) 8.0 Memory Card Connector
Secure Digital (SD) 8.0 Memory Card Connector
1.00mm Pitch SD 8.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 2.98mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. A simple structural design enables effective cost reduction.
3.Thin and light weight, small size, optimized PCB space, Saving internal space for customers.
4.Reliable detect switch,assures card detection.
Understand the Parameters of the Height 2.98mm SD 8.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
4 Gb/s
|
|
|
Number of pins:
|
21
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Detail Drawing of Height 2.98mm SD 8.0 Card Connector
