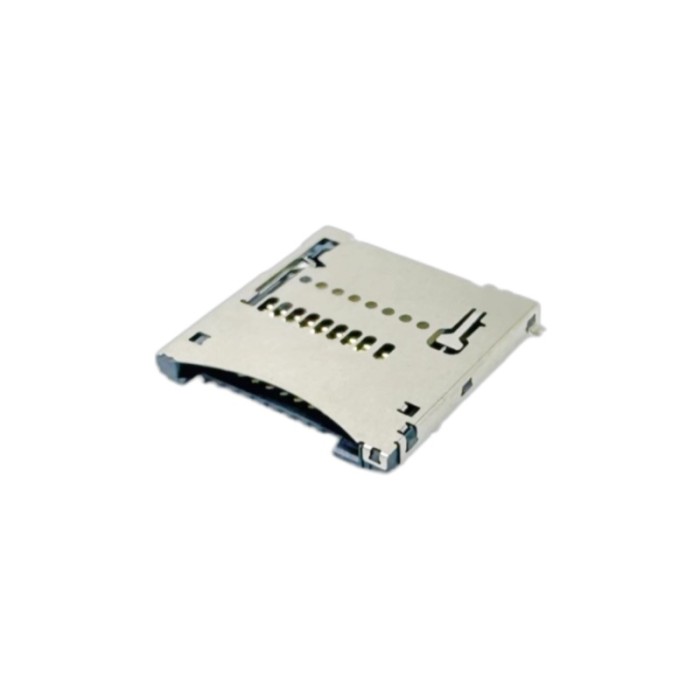

Micro SD 7.0 Card Connector 985MB/s Push-Push Type Height 1.55mm
| Share | |
|---|---|
| Categories | Micro SD 7.0 card connector |
| Brand | Moarconn Card Connector Manufacturer |
| Model | Micro SD Card Connector（MC155-T1250-10） |
| Product Height | 1.55mm |
| Usable Memory Card | Micro SD 7.0 memory card / TF memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Learn about Height 1.55mm Micro SD7.0 Card Connector
Micro SD7.0 Memory Card Connector
0.91mm pitch Micro SD7.0 Memory Card Connector,Top Mount Type, Push-Push structure, 1.55mm Height
Advantage：
1. Easily push-push Micros SD card injection, users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable Detection Switch, Supports hot-plug function.
3. Ultra-thin Design, Offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted.
Understand the Parameters of the Height 1.55mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985 Mb/s
|
|
|
Number of pins:
|
20
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |

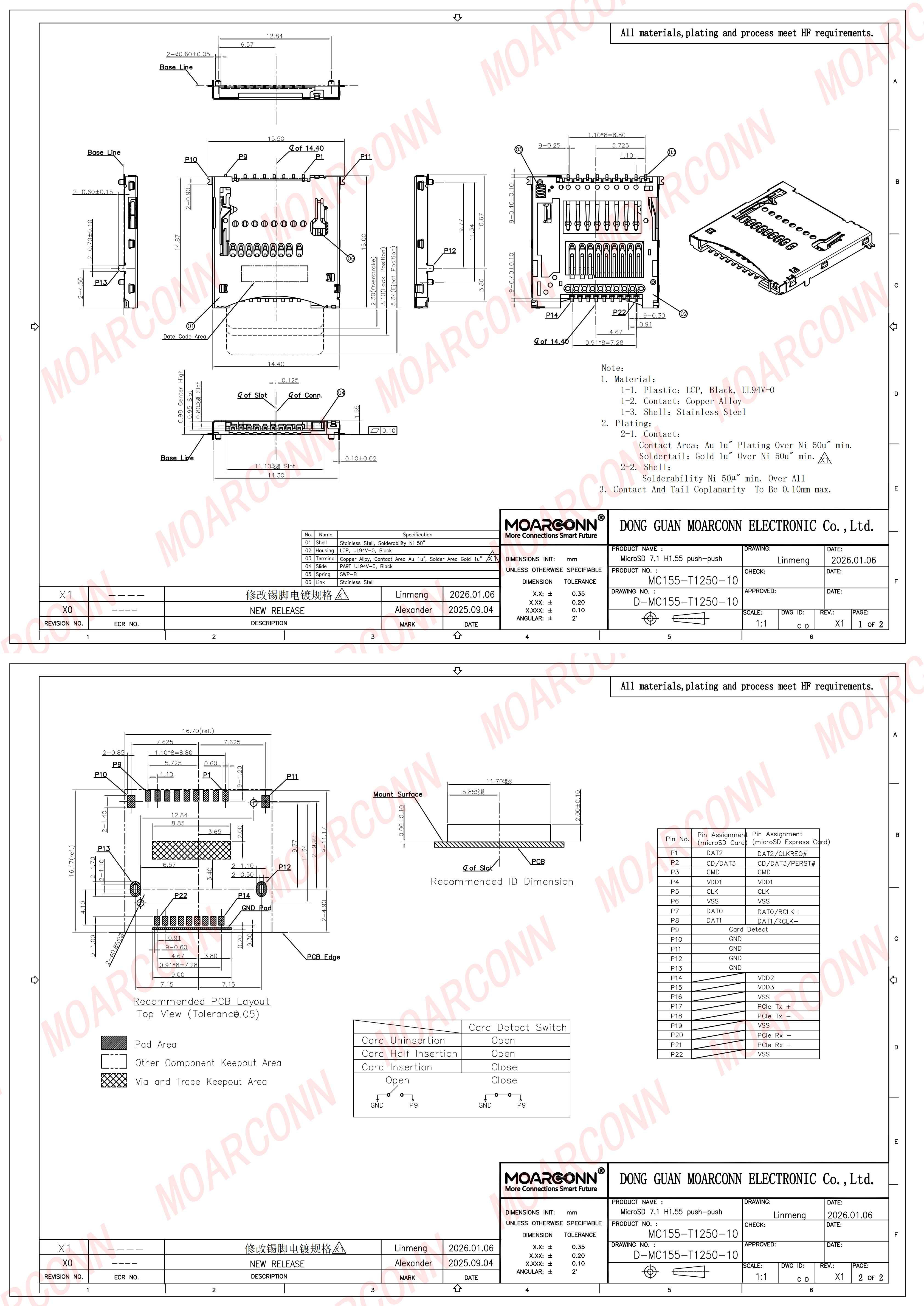

Detail Drawing of Height 1.55mm Micro SD Card Connector
