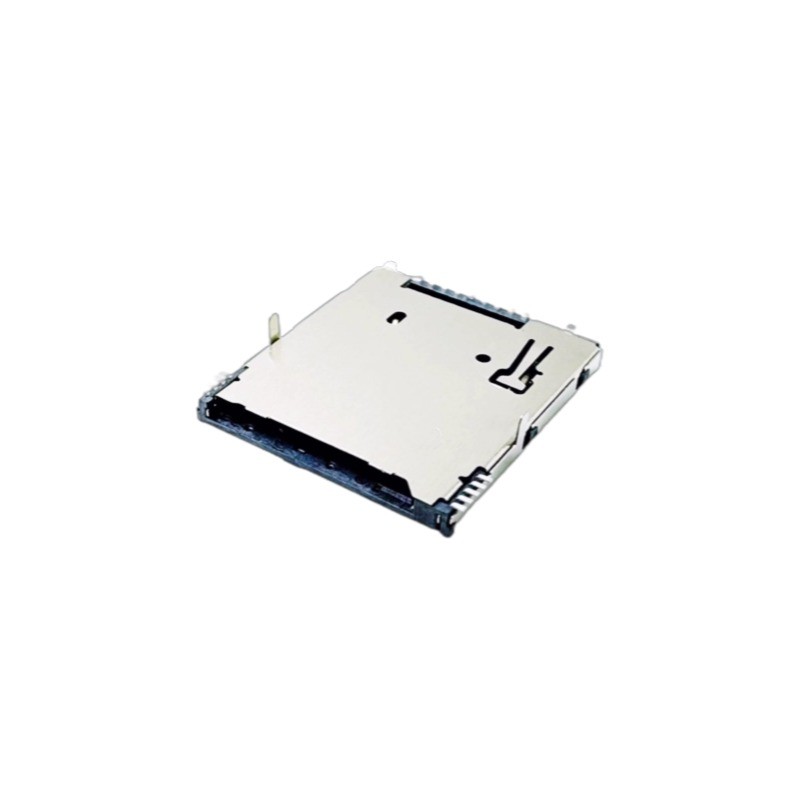

Micro SD 4.0 Card Socket Connector Push-Push Type Bottom Mount Height 1.50mm
| Share | |
|---|---|
| Categories | Micro SD 4.0 card connector |
| Brand | Moarconn Card Connector Manufacturer |
| Model | Micro SD Card Connector（MC150-T1250-30） |
| Product Height | 1.50mm |
| Usable Memory Card | Micro SD 4.0 memory card / TF memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Learn about Height 1.50mm Micro SD Card Connector
Micro SD Memory Card Connector
0.80mm Pitch Micro SD 4.0 Memory Card Connector, Bottom Mount Type, Push-Push structure,1.50mm Height
Advantage：
1. Supports Micro SD 4.0 high-speed transfer, and used in UAV field.
2. Push-Push mechanism enables easy card insertion and ejection with a lifespan of over 5,000 cycles.
3. Features a detection pin design supporting hot-plug functionality.
4. Complies with RoHS and REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 1.50mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
20
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |

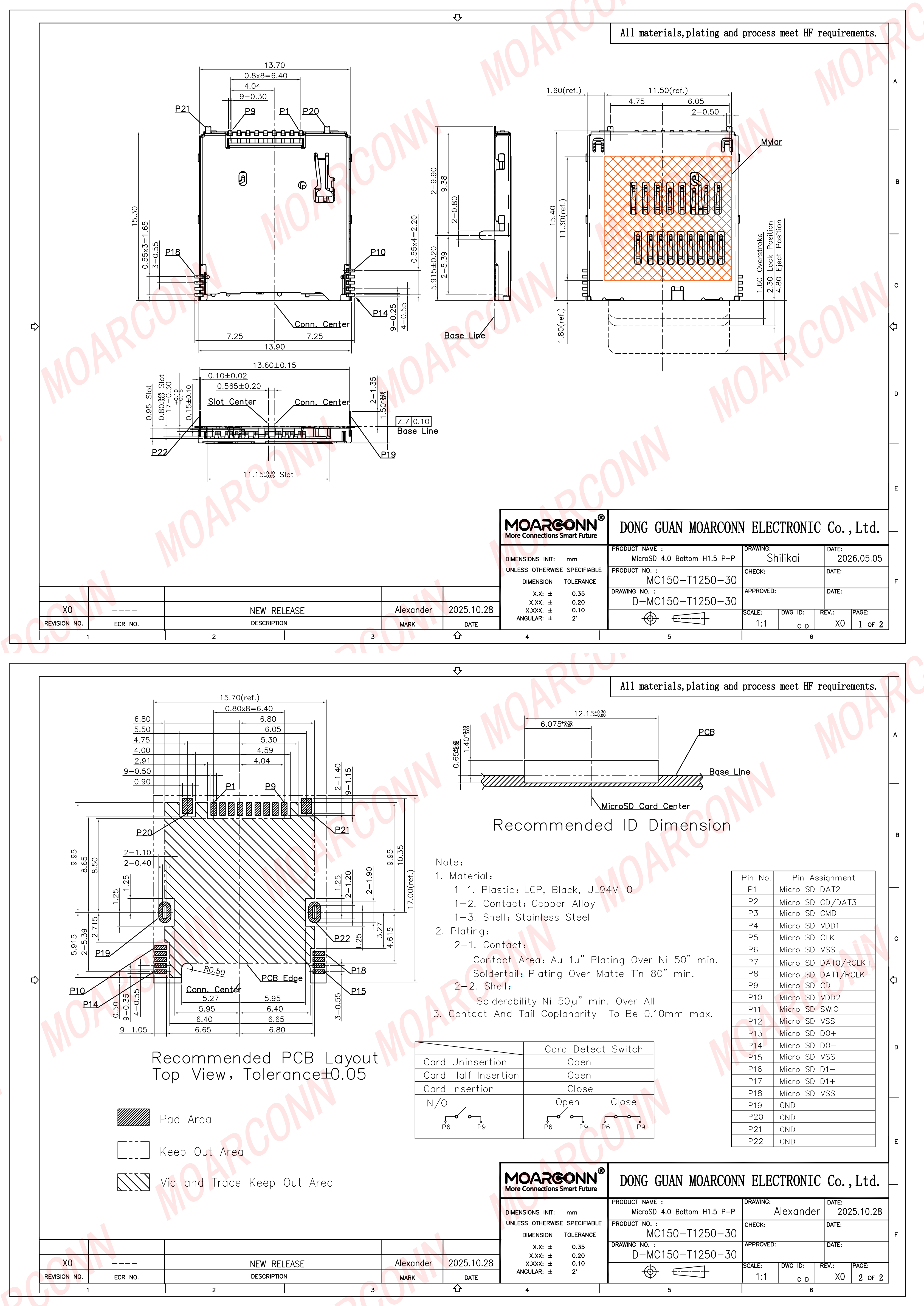

Detail Drawing of Height 1.50mm Micro SD Card Connector
