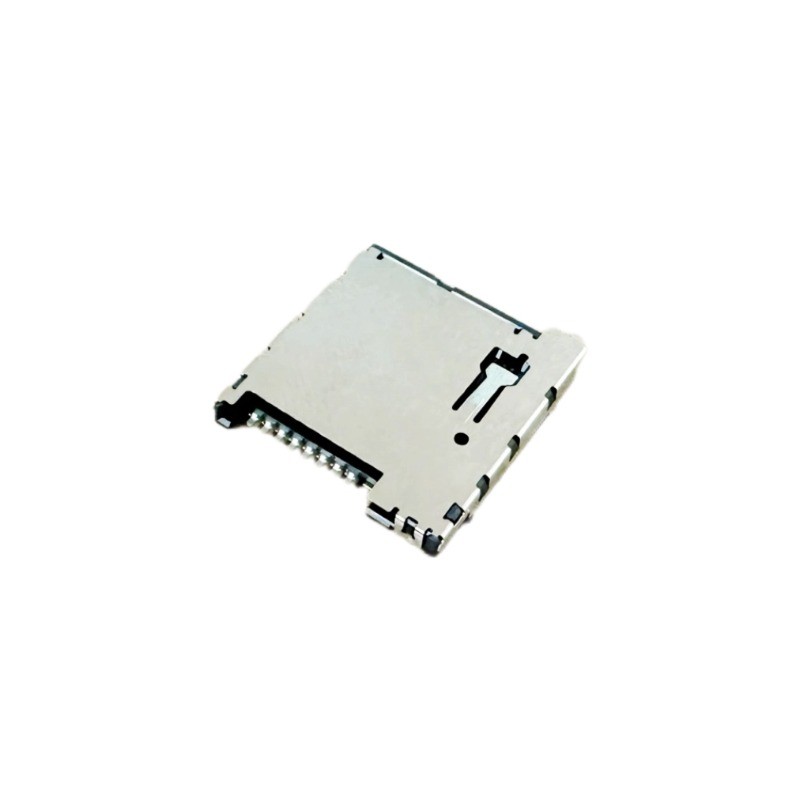

Micro SD 4.0 Card Socket Connector Push-Push Type Top Mount Height 1.45mm
| Share | |
|---|---|
| Categories | Micro SD 4.0 card connector |
| Brand | Moarconn Card Connector Manufacturer |
| Model | Micro SD 4.0 Card Connector（MC145-D1230-01） |
| Product Height | 1.45mm |
| Usable Memory Card | Micro SD 4.0 memory card / TF memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Learn about Height 1.45mm Micro SD Card Connector
Micro SD Memory Card Connector
0.95mm Pitch Micro SD 4.0 Memory Card Connector, Top Mount Type, Push-Push structure,1.45mm Height
Advantage：
1. The stable switch pin design supports hot-plug functionality.
2. The push-push structure ensures easy card insertion and removal.
3. Strict coplanarity control ensures good soldering performance.
4. Complies with RoHS and REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 1.45mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
18
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |

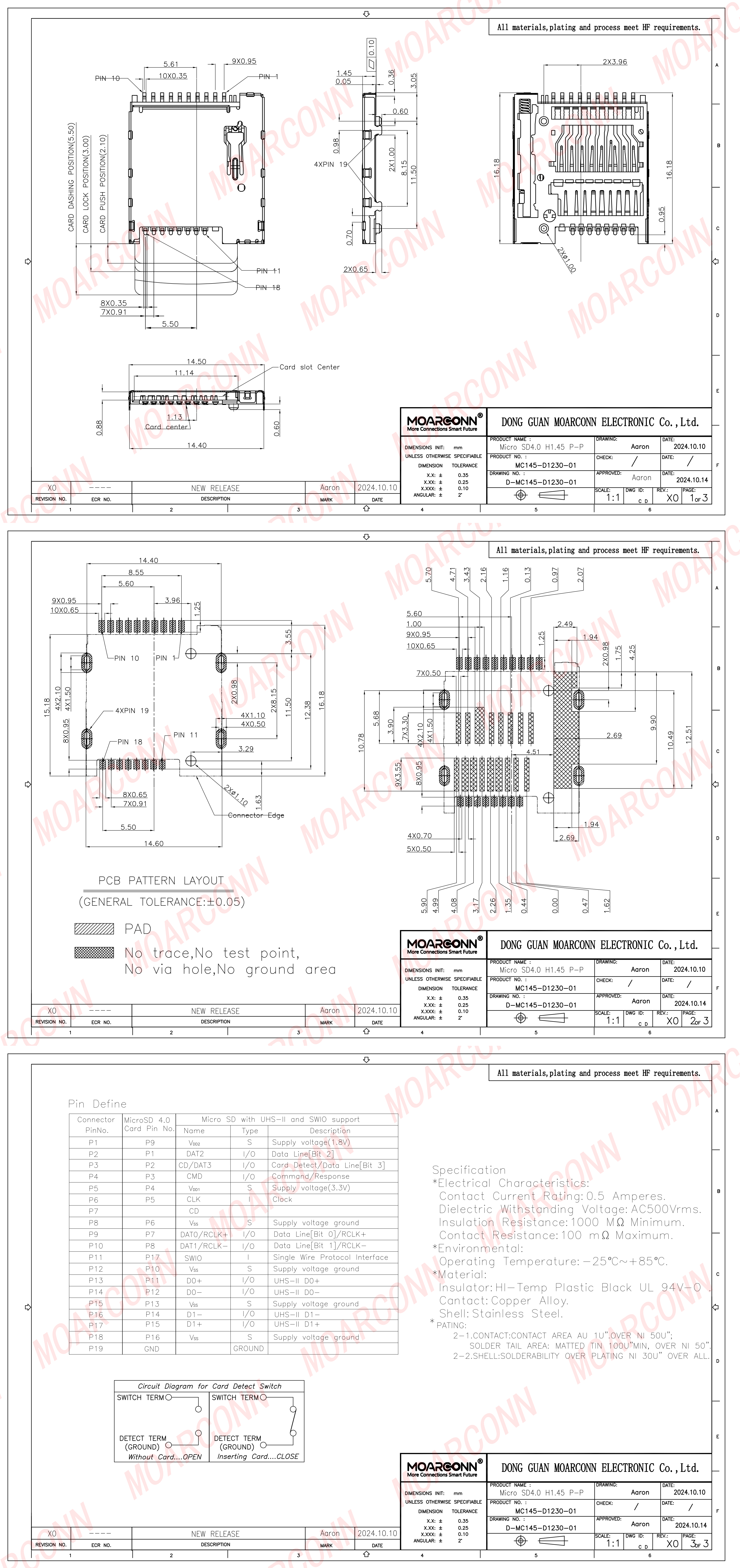

Detail Drawing of Height 1.45mm Micro SD Card Connector
