How to Choose Reliable SD Card Connectors to Avoid Read/Write Failures (Engineer’s Guide)
How to Choose Reliable SD Card Connectors to Avoid Read/Write Failures (Engineer’s Guide)
Maximize reliability, maintain data integrity, and ensure lifetime performance with high-quality SD Card Connectors.
Introduction: The Hidden Link Between SD Card Connectors and Data Reliability
Every engineer or product designer working with memory storage systems understands that data integrity is only as strong as the weakest link in the signal path. Often, the spotlight is on the SD card itself — yet the connector interface between your device and the SD card plays a critical role in read/write success.
When SD card read/write errors occur, the first instinct is to blame the card or the controller — but more often than not, intermittent contacts, mechanical fatigue, and insufficient connector design are the real culprits. According to electronics design authorities like Digi-Key and industry connector specialists, memory card connectors are as essential to stable data transfer as PCB layout or signal integrity control.
This guide synthesizes best practices, industry benchmarks, and proven engineering strategies — combined with Moarconn’s SD card connector expertise — to help you choose reliable connectors and eliminate failure points in harsh real-world environments.
Section 1 — Why SD Card Connector Quality Matters More Than You Think

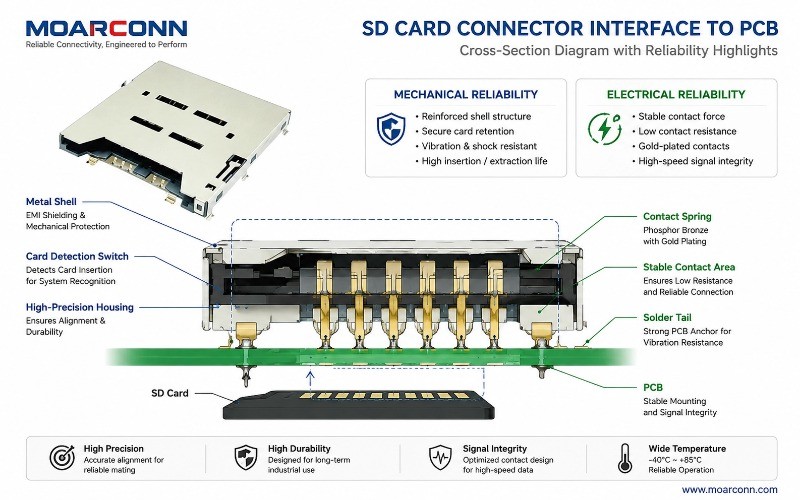

Mechanical Contacts = Data Highway
An SD card connector is far more than a passive socket. In high vibration, temperature cycling, or repeated insertion environments — such as automotive, industrial, or mobile applications — poor contact stability directly translates into intermittent connections, signal distortion, and ultimately read/write failures.
Key failure modes include:
Low contact force — leads to micro-gaps and intermittent connectivity
Fretting corrosion — caused by micro-movement under vibration
Mechanical fatigue — degraded performance after repeated cycles
Material aging — poor plating layers accelerate wear
According to Digi-Key’s connector fundamentals article, designers must start thinking of connectors not just as mechanical parts, but as integral components of the device’s signal and reliability architecture.
Section 2 — Top Factors That Impact SD Card Connector Reliability
Here’s a concise checklist every engineer should assess when choosing SD card connectors:
✔ Contact Material and Plating Quality
The contact surface must resist oxidation and maintain low resistance across thousands of cycles.
Gold plating with optimal thickness
Anti-corrosion surface treatments
High-conductivity alloys
📌 Moarconn Advantage:
Moarconn’s SD Card Connectors use premium thick gold plating and alloy contacts designed for long-term reliability, ensuring stable contact force over repeated use.
✔ Insertion/Ejection Mechanism (Push-Push vs Push-Pull)
Different mechanisms affect mechanical durability and retention force.
Push-Push: spring-loaded retention, often smoother
Push-Pull: more direct extraction, can be more rigid
Each has trade-offs depending on use case (e.g., serviceable devices vs sealed units).
✔ Vibration and Environmental Resistance
Real-world applications rarely exist in static lab conditions. Connectors must tolerate:
Vibration (automotive/industrial)
Temperature cycling
Moisture / condensation / humidity
Dust ingress
Moarconn’s tailored SD card connectors are engineered with enhanced spring contact design and reinforced housings to resist vibration-induced signal loss.
✔ PCB Mounting and Mechanical Support
Connector reliability is only as good as its PCB mounting implementation. Key considerations:
Reinforced solder pad design
Anchor posts to reduce PCB stress
Controlled impedance paths
Section 3 — SD Connector Types Compared: What Works Best?
Push-Push Mechanism
✔ Advantage: smooth press-in, secure retention
✘ Disadvantage: slightly more complex mechanism
Push-Pull Mechanism
✔ Advantage: simple extraction
✘ Disadvantage: potential contact rebound
Locking / Latch Design
✔ Best for harsh-environment devices
✘ Slightly larger footprint
For long-term cycle stability, push-push connectors with optimized spring geometry often outperform basic designs.
Section 4 — Signal Integrity & Electrical Stability: Avoiding Data Errors
Not all connector issues are mechanical — electrical performance matters too.
Insertion loss
Crosstalk
Impedance mismatch
High-speed SD and SD-Express interfaces require connectors that maintain electrical consistency across the interface. According to Samesky Devices’ memory connector guide, signal continuity and electrical performance must be part of the connector evaluation process.
In addition to material and mechanical design, controlling PCB trace impedance, shielding, and ground return paths ensures consistent read/write performance.
Section 5 — Proven Engineering Best Practices for Reliability
✔ Simulation & Testing Before Production
Use finite element analysis (FEA) and signal integrity simulations to pre-validate connector performance.
✔ Accelerated Life Testing
Implement:
Thermal cycling
Vibration / shock tests
Insertion / extraction cycle counts
Moarconn performs industry-standard durability testing on every SD card connector series, ensuring field-grade reliability.

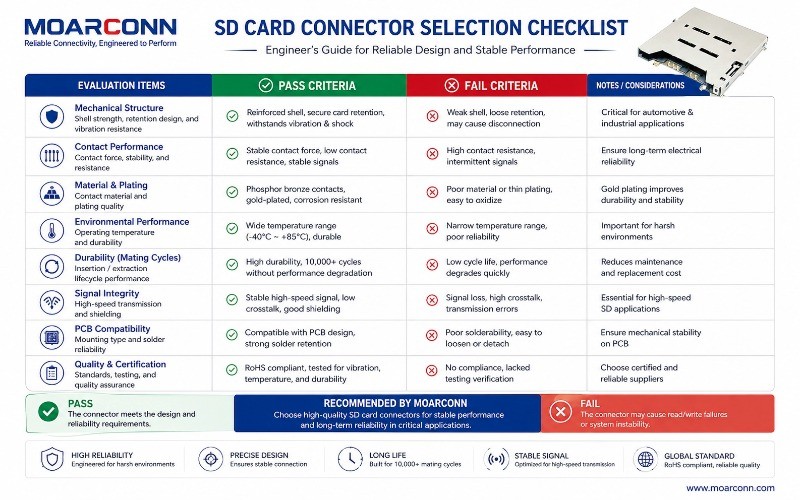

✔ Design Evaluation Checklist
Before finalizing any connector selection:
Evaluation Item Pass/Fail?
Contact resistance stability ☐
Gold plating thickness ☐
Vibration tests passed ☐
Insertion cycles ☐
Environmental sealing ☐
Section 6 — Why Moarconn SD Card Connectors Are Engineered for Reliability
As a leading connector solutions provider, Moarconn specializes in custom SD card connectors engineered for demanding applications:
🔹 High insertion/withdrawal durability
🔹 Optimized contact force retention
🔹 High-temperature LCP housings
🔹 Vibration-resilient design
🔹 Customizable form factors for OEM needs
Every product is supported by engineering expertise and documented testing, helping solve real field failures rather than simply supplying parts.
Learn more about our connector solutions at:
👉 https://www.moarconn.com
Conclusion: Choose Reliability First, Data Stability Will Follow
Choosing the right SD card connectors is not just a matter of specification — it’s a matter of understanding connector behavior under real-world conditions.
A thoughtful selection based on mechanical, electrical, and environmental reliability dramatically reduces read/write errors and improves product life.
When you evaluate SD card connectors using the criteria outlined above — and choose partners like Moarconn who focus on engineered reliability — you’re more likely to deliver products that excel in the field, not just on paper.
