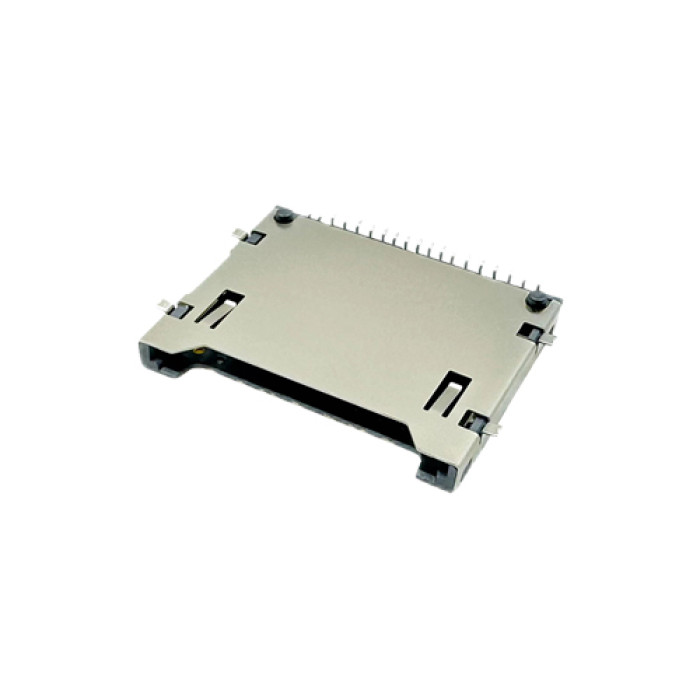

SD 4.0 Card Connector Push-Pull Bottom Mount Height 2.90mm
SD 4.0 Card Connector Push-Pull Bottom Mount Height 2.90mm
| Categories | SD 4.0 Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | SD 4.0 Card Connector（SD290-T1250-01） |
| Product Height | 2.90mm |
| Usable Memory Card | SD 4.0/SD 3.0memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | May 18,2025 |
Detail Information
Learn about Height 2.90mm SD 4.0 Card Connector
Secure Digital (SD) 4.0 Memory Card Connector
1.05mm Pitch SD 4.0 Memory Card Connector, Bottom Mount SMT Type, Push-Pull structure, 2.90mm Height
Advantage：
1. The product adopts a bottom mount type design, providing flexible adaptation to customers' internal device space layouts.
2.Backward compatible with SD 4.0/3.0 standards, supporting multiple memory card types.
3.Widely implemented in card reader products, enabling high-speed data transfer.
4.Complies with RoHS/REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 2.90mm SD 4.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
19
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 2.90mm SD 4.0 Card Connector
