SD 4.0 Card Connector Push-Push Top Mount Height 3.00mm
| Share | |
|---|---|
| Categories | SD 4.0 Card Connector |
| Brand | Moarconn Card Connector Manufacturer |
| Model | SD 4.0 Card Connector（SD300-T1230-01-W） |
| Product Height | 3.00mm |
| Usable Memory Card | SD 4.0/SD 3.0memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Learn about Height 3.00mm SD 4.0 Card Connector
Secure Digital (SD) 4.0 Memory Card Connector

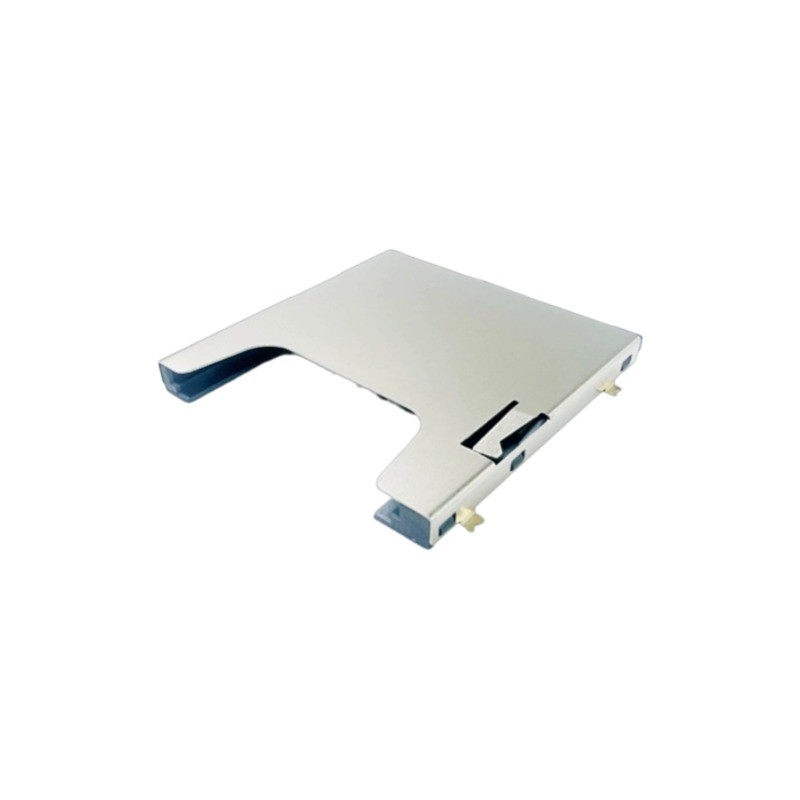

1.25mm Pitch SD 4.0 Memory Card Connector, Top Mount SMT Type, Push-Push structure, 3.00mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. Supports hot-swapping, allowing storage card recognition without restarting the device.
3. Ultra-thin structural design saves PCB space for customers, making it ideal for portable devices.
4. The push-push structure ensures easy card insertion and removal.
Understand the Parameters of the Height 3.00mm SD 4.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
19
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |

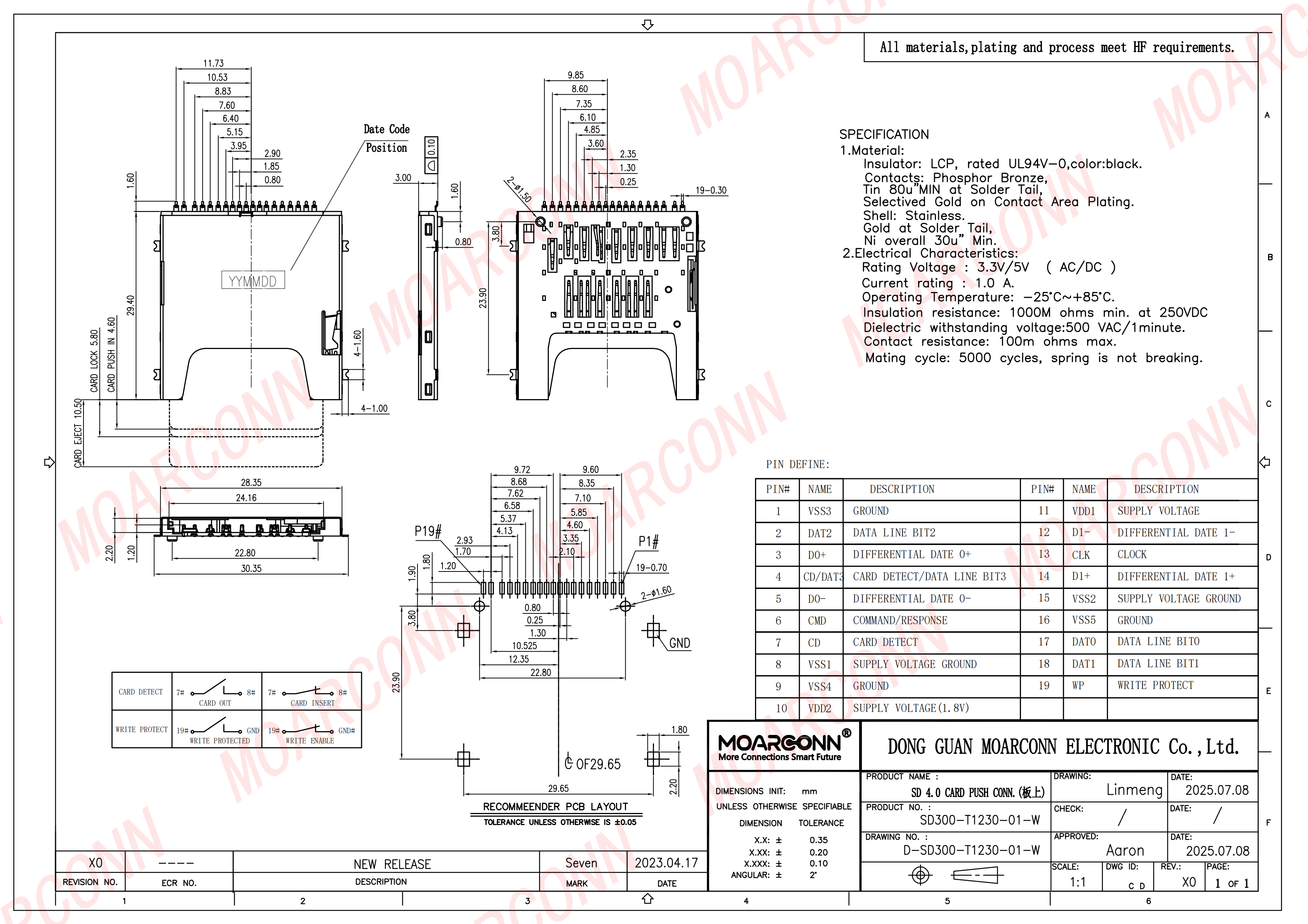

Detail Drawing of Height 3.00mm SD 4.0 Card Connector
