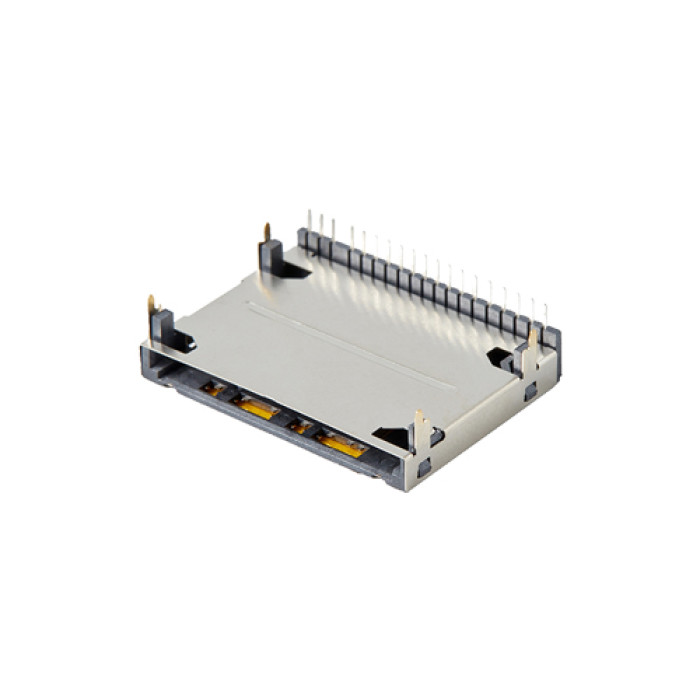

SD 4.0 Card Connector Push-Pull Bottom Mount Height 5.23mm
SD 4.0 Card Connector Push-Pull Bottom Mount Height 5.23mm
| Categories | SD 4.0 Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | SD 4.0 Card Connector（SD523-D6251-01） |
| Product Height | 5.23mm |
| Usable Memory Card | SD 4.0/SD 3.0memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 29,2025 |
Detail Information
Learn about Height 5.23mm SD 4.0 Card Connector
Secure Digital (SD) 4.0 Memory Card Connector
1.20mm Pitch SD 4.0 Memory Card Connector, Bottom Mount DIP Type, Push-Pull structure, 5.23mm Height
Advantage：
1. The product features a bottom mounted stand-off design for flexible adaptation to customers' internal device space layouts.
2. All solder pins utilize DIP type for stronger soldering joints and enhanced mechanical stress resistance.
3.Suitable for industrial computers and medical equipment to ensure stable data storage.
4.Equipped with Push-Pull mechanism for easy one-handed card insertion and ejection with convenient operation.
Understand the Parameters of the Height 5.23mm SD 4.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
19
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 5.23mm SD 4.0 Card Connector
