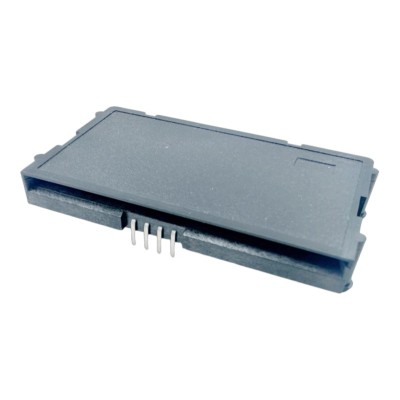

Smart Card Connector 8pin With 2 Switch Pins Height 0.45mm
| Categories | Smart Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | Smart Card Connector（SM045-T2100-01） |
| Product Height | 0.45mm |
| Usable Memory Card | smart card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 6,2025 |
Detail Information
Learn about Height 0.45 mm Smart Card Connector
Smart Card Socket Connector
2.54mm Pitch Smart Card Connector, Top Mount SMT Type, 8 pins With 2 switches,0.45mm Height
Advantage：
1. Strict coplanarity control, make sure to it is a exceptional solderability.
2. Simple design,no automatic ejection mechanism,with price advantage.
3. Ultra-thin design,save more interior space for customers' products.
4.Reliable detection switch pins,support hot-plug function.
Understand the Parameters of the Height 0.45 mm Smart Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Hot-swappable
|
|
Used for: | ETC(Electronic Toll Collection),Smart Home,Payment Terminals | |
Download
Detail Drawing of Height 0.45 mm Smart Card Connector
