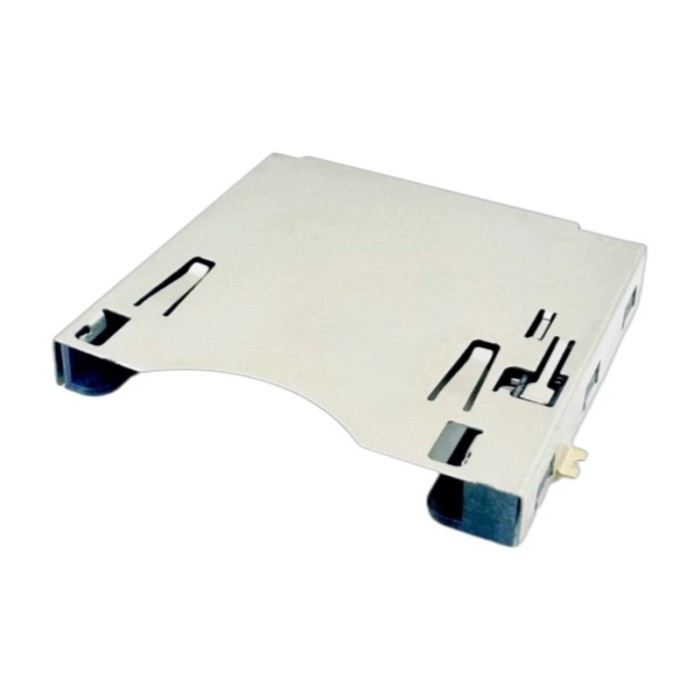

CF Express Card Connector B Type Push-Push Height 4.75mm
| Share | |
|---|---|
| Categories | Smart Card Connector |
| Brand | Moarconn Card Connector Manufacturer |
| Model | CF Express Card Connector（CF475-T1250-01-W） |
| Product Height | 4.75mm |
| Usable Memory Card | CF Express card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Learn about Height 4.75 mm CF Express Card Connector B Type
CF Express Card Socket Connector B Type
1.00mm Pitch CF Express Card Connector, Top Mount SMT Type, 21 pins, 4.75mm Height
Advantage：
1. Ensures stable card positioning and reliable connectivity during operation.
2. Enables convenient card insertion and removal with a simple push-to-release mechanism.
3. Designed for CFexpress Type B applications requiring high-speed data transmission.
4. Features a space-efficient structure and robust construction for integration into professional electronic devices.
Understand the Parameters of the Height 4.75 mm CF Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 10000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
3500 M/s
|
|
|
Number of pins:
|
21
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High-speed transmission
|
|
Used for: | Digital Camera, Card reader | |
Download
Detail Drawing of Height 4.75 mm CF Card Connector B Type
