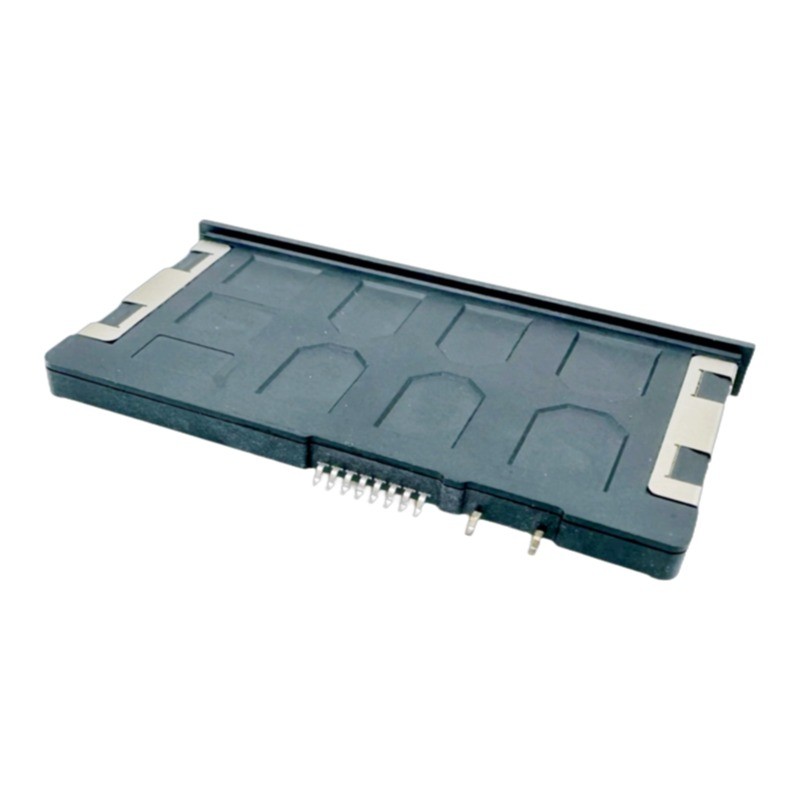

Smart Card Connector 8pin With 2 Switch Pins Height 5.40mm
Detail Information
Learn about Height 5.40mm Smart Card Connector
Smart Card Socket Connector
1.27mm Pitch Smart Card Connector, Top Mount SMT Type, 8 pins With 2 switches, 5.40mm Height
Advantage：
1. Precision contact design supports stable card reading and data transmission.
2. The rugged shells and DIP lead design ensure stronger solder joints.
3. The insertion and pullout life reaches 500,000 cycles.
4.Reliable detection switch pins,support hot-plug function.
Understand the Parameters of the Height 5.40mm Smart Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 500,000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Hot-swappable
|
|
Used for: | ETC(Electronic Toll Collection),Smart Home,Payment Terminals | |

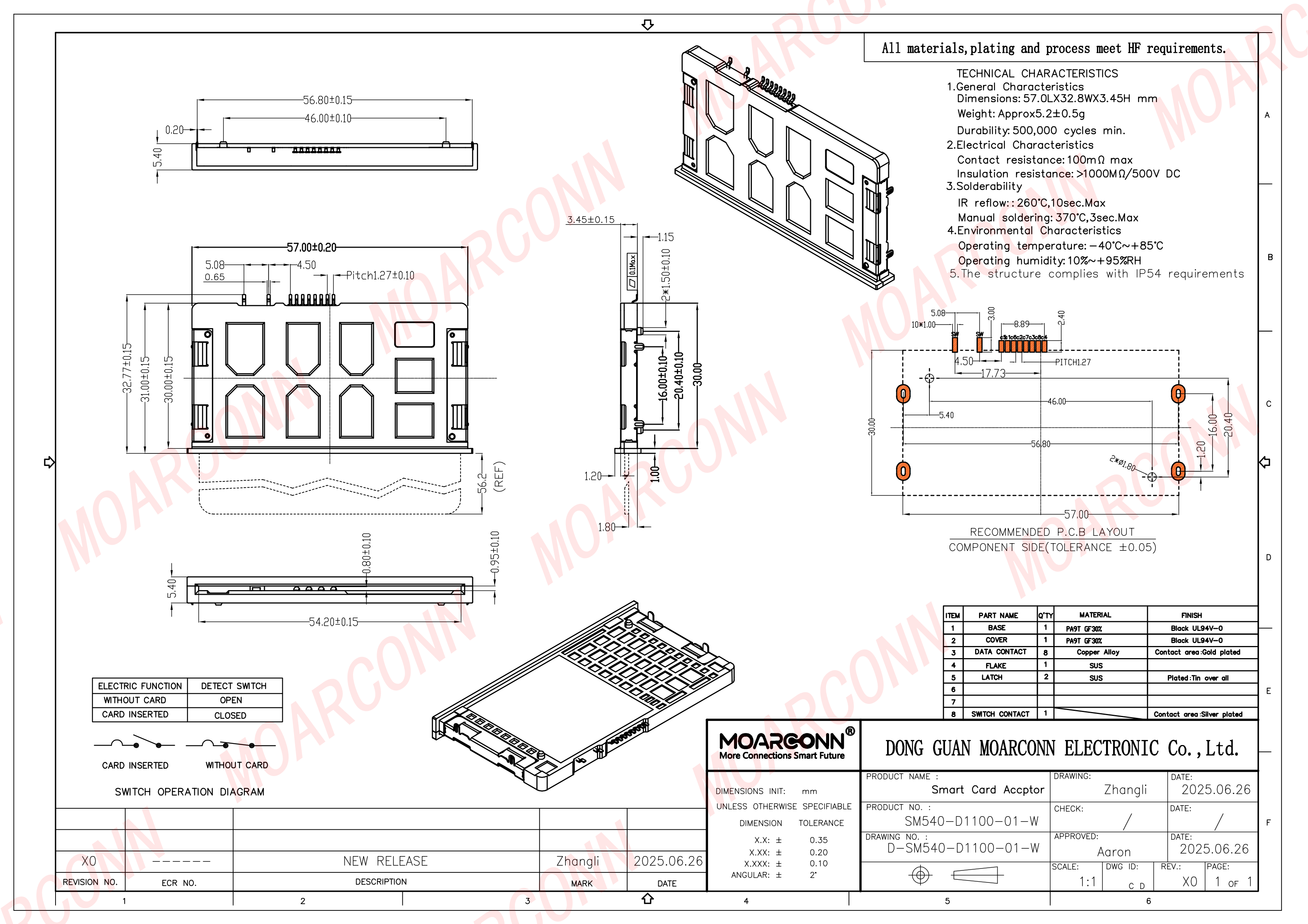

Detail Drawing of Height 5.40mm Smart Card Connector
