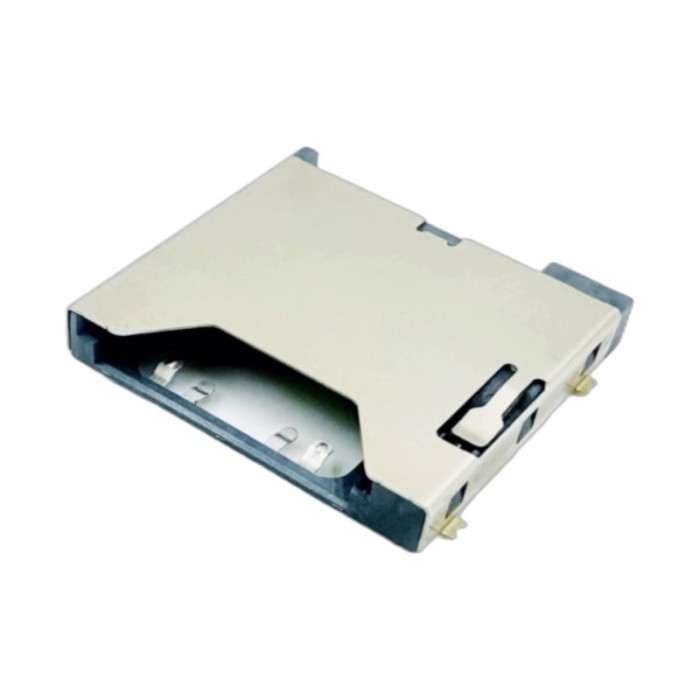

CF Express Card Connector A Type Push-Push Height 3.75mm
| Share | |
|---|---|
| Categories | Smart Card Connector |
| Brand | Moarconn Card Connector Manufacturer |
| Model | CF Express Card Connector（CF375-T5230-01-W） |
| Product Height | 3.75mm |
| Usable Memory Card | CF Express card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
Detail Information
Learn about Height 3.75 mm CF Express Card Connector
CF Card Socket Connector
1.20mm Pitch CF Express Card Connector, Top Mount SMT Type, 13 pins, 3.75mm Height
Advantage：
1. Secure card holding design ensures stable connection during use.
2. Easy card insertion and ejection for convenient operation.
3. Compact structure supports space-efficient integration into electronic devices.
4. Robust metal construction helps provide mechanical protection and long-term reliability.
Understand the Parameters of the Height 3.75 mm CF Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 10000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985M/s
|
|
|
Number of pins:
|
13
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High-speed transmission
|
|
Used for: | Digital Camera, Card reader | |
Download
Detail Drawing of Height 3.75 mm CF Card Connector
