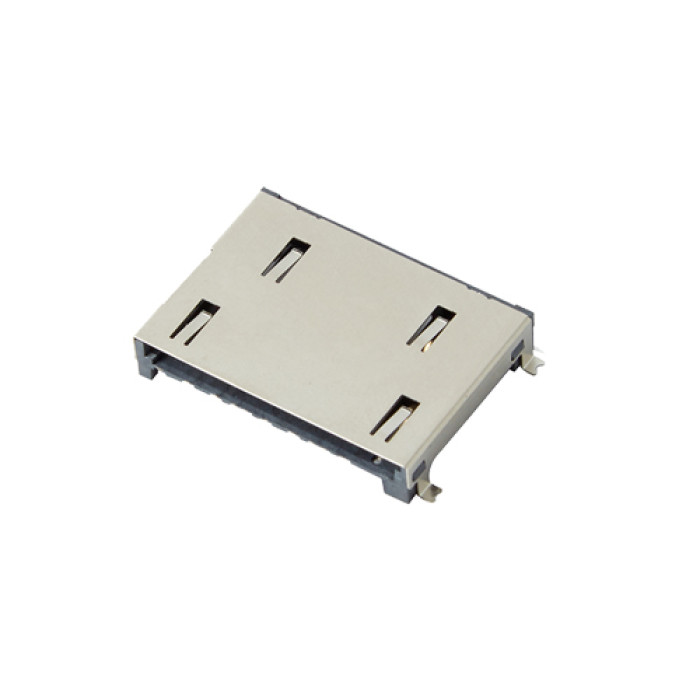

High Speed SD 7.0 Card Connector Push-Pull Type Top Mount Height 5.00mm
High Speed SD 7.0 Card Connector Push-Pull Type Top Mount Height 5.00mm
| Categories | SD 7.0 Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | SD 7.0 Card Connector（SD500-T1250-01） |
| Product Height | 5.00mm |
| Usable Memory Card | SD 7.0/SD 4.0/SD 3.0memory card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 9,2025 |
Detail Information
Learn about Height 5.00mm SD 7.0 Card Connector
Secure Digital (SD) 7.0 Memory Card Connector
1.05mm Pitch SD 7.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 5.00mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. The product features a stand-off type design to accommodate customers' internal spatial requirements.
3.Incorporates a push-pull mechanism for easy SD card insertion and ejection,with a mechanical lifespan of 10,000 cycles.
4.Compliant with SD 7.0 standard, achieving transfer speeds up to 985MB/s to support 4K/8K ultra-HD video recording and high-speed photography applications requiring large-capacity storage.
Understand the Parameters of the Height 5.00mm SD 7.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985 Mb/s
|
|
|
Number of pins:
|
21
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 5.00mm SD 7.0 Card Connector
