SD 7.0 Card Connector Push-Push Type Top Mount Height 4.00mm

SD 7.0 Card Connector Push-Push Type Top Mount  Height 4.00mm
Share
CategoriesSD 7.0 Card Connector
BrandMoarconn Card Connector Manufacturer
Product SpecificationsSD 7.0 Card Connector(SD400-T1251-01)
Product Height4.00mm
Usable Memory CardSD 7.0/SD 4.0/SD 3.0memory card
Base MaterialLCP
Terminals MaterialPhosphorous Bronze
Shell MaterialStainless Steel
Terms of PaymentL/C, D/A, D/P, Western Union
DownloadDownload pdf
Detail Information
SD 7.0 card connector · Push-push · Top mount

4.00mm SD 7.0 card connector
Press to lock, press again to eject

A 1.50mm pitch, 9-pin SD 7.0 card connector in a top mount, push-push design.

  • 4.00mm mounted height
  • 1.50mm terminal pitch
  • 9 pins
  • 10,000 cycles

Engineer reply within 1 working day · RoHS compliant · Custom options available

SD400-T1251-01
4.00mm height
SD400-T1251-01 · in stock for sampling
624 MB/speak transfer
4.00mmMounted height
10,000Insertion cycles
-45~80°COperating range
Start from the failure

A card connector is invisible — until it fails

Connector failures are rarely dramatic. They are a few milliohms of drift, a lifted pad, a card that reads intermittently in a hot car.

01 / MECHANISM

The card jams or won't pop out after some use

The ejector is the part of a push-push socket that fails first. A reliable cam-and-spring design keeps every press stroke consistent for a crisp eject across 10,000 insertion cycles.

Press-to-eject
02 / SIGNAL INTEGRITY

Data drops at speed, card not detected

Gold-plated terminals (≥0.025 µm) hold contact resistance to ≤30 mΩ with tight coplanarity control, keeping high-speed signals stable through humidity and thermal cycling.

Contact integrity
03 / REFLOW RELIABILITY

Reflow warps the insulator, pads lift

An LCP insulator takes lead-free reflow without deformation; the stainless-steel shell keeps the frame flat; terminals are coplanarity-controlled to ±0.05 mm.

SMT yield
04 / FIELD FAILURE

Card detection fails after a few insertions

A reliable detect switch guarantees card detection, backed by the retention structure, for 10,000 insertion cycles.

Card detection
Specifications

Every parameter, translated into a design decision

A datasheet lists values. A specification explains what each value controls. Final tolerances, plating thickness and acceptance criteria are confirmed on the 2D drawing and datasheet.

Mechanical

Mounting type
Top mount
Mounted height
4.00mm
Terminal pitch
1.50mm
Number of pins
9
Mechanism
Push-push (ejector)
Terminal coplanarity
±0.05 mm

Electrical

Rated current
0.5 A
Rated voltage
500 V
Contact resistance
≤30 mΩ
Insulation resistance
1,000 MΩ
Transfer rate
624 MB/s
Durability
10,000 cycles

Materials & plating

Insulator
LCP
Terminals
Phosphorous Bronze · gold ≥0.025 µm
Shell
Stainless Steel
Process
Lead-free reflow compatible
Card type
SD 7.0/SD 4.0/SD 3.0memory card

Environment & ordering

Operating temperature
-45 ~ 80°C
RoHS
Compliant
Part number
SD400-T1251-01
Sampling lead time
7 days
Sample policy
Free samples
Inside the connector

Four decisions that keep the card reading

Every structural decision keeps the card reading and held in place.

SD400-T1251-01

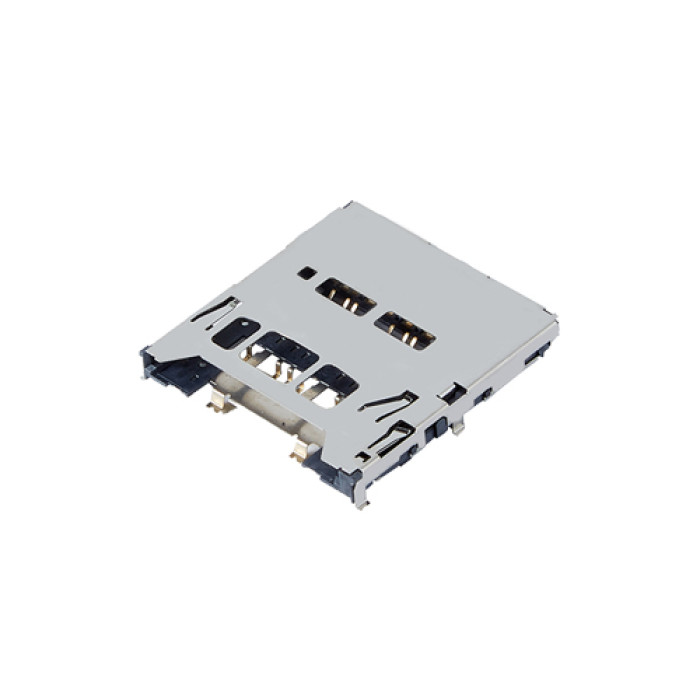

SD400-T1251-01 — stainless shell, LCP insulator, gold-plated terminals.
SD400-T1251-01
Top mount, design, 4.00mm mounted height.
01
Push-push mechanismA cam-and-spring design: press once to lock, press again to eject. Consistent stroke, crisp feel, and the card always pops out cleanly.
02
Gold-plated phosphor bronze terminalsGold resists oxidation; phosphor bronze keeps normal force over thousands of insertions, holding contact resistance to ≤30 mΩ.
03
LCP insulatorDimensional stability through lead-free reflow, so pin position and coplanarity survive the oven — not just the drawing.
04
Stainless-steel shellHolds the card under drop and vibration, shields the contact field, and keeps the frame flat during assembly.
Selection matrix

Same card, multiple mechanical answers

Same card, same interface — the family offers different height and mechanism combinations. Most mistakes are the right connector in the wrong stack-up.

ModelHeightMechanismMountingChoose it when
SD325-T1150-013.25mmPush-pushTop mountPush-push
SD587-D1250-015.87mmPush-pullTop mountPush-pull
SD500-T1250-015.00mmPush-pullTop mountPush-pull
SD400-T1251-01This page4.00mmPush-pushTop mountPush-push
SD300-T1250-233.00mmPush-pullTop mountPush-pull
SD295-D1250-202.95mmPush-pullTop mountPush-pull
Applications

Built for products that get carried, dropped and used daily

Wherever the card is a user-accessible medium, retention and contact stability matter more than price.

Laptops & tabletsThin lids and dense boards — a low-profile socket protects the thickness budget.
Card readers & docking stationsHigh insertion frequency; gold plating and 10,000 cycles carry the duty.
Digital camerasField card swaps and burst shooting; the high-speed interface covers 4K/8K and RAW.
Industrial & vehicle electronicsVibration and wide temperature; stainless shell and LCP body hold alignment.
Before you ask

Frequently asked questions

What is the difference between SD 3.0 / 4.0 / 7.0 / 8.0?

It is mainly transfer speed: SD 3.0 (UHS-I) ~104 MB/s, SD 4.0 (UHS-II) ~312 MB/s, SD 7.0 (UHS-III) ~624 MB/s, and SD 8.0 (SD Express) peaks around 4 GB/s. Interfaces are backward compatible with the same card opening, but higher speed demands more signal integrity.

Should I choose push-push or push-pull?

Push-push has an ejector and pops the card out — good for consumer devices. Push-pull has no ejector, fewer parts and nothing to jam — good for fixed and industrial use.

Is it reflow compatible?

Yes. SMT sockets use an LCP insulator and coplanarity-controlled terminals for standard lead-free reflow; the exact profile is in the datasheet and drawing.

Can you cross-reference an imported brand?

Send the part number and drawing. We compare pad layout, height, pitch and retention, then confirm drop-in or layout-change before sampling.

What is the minimum order and lead time?

Samples are free, sampling takes 7 days, and volume production is 7–15 days. MOQ and lead time are confirmed with the quotation; zero-MOQ trial runs are available.
