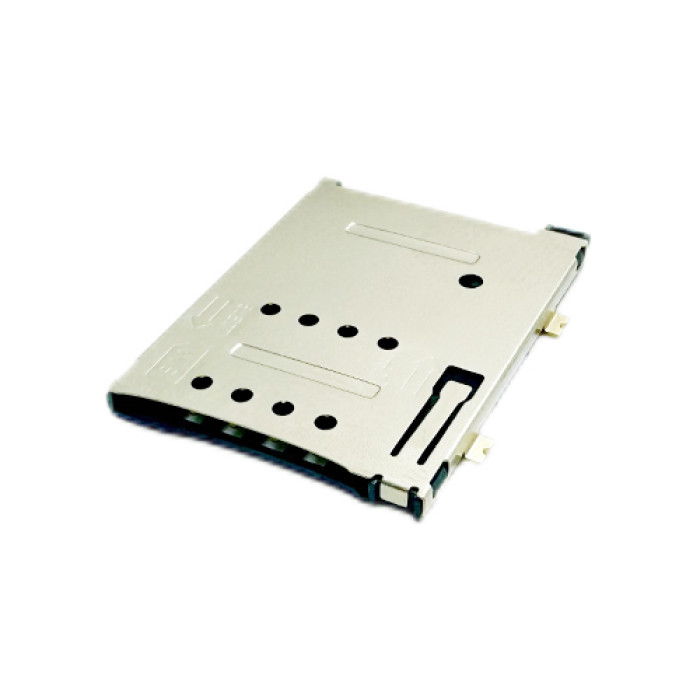

Mini SIM Card Connector, Push-Push type, top Mount Height 1.80mm, Support Customization.

Mini SIM Card Connector, Push-Push type, top Mount Height 1.80mm, Support Customization.

Mini SIM Card Connector, Push-Push type, top Mount Height 1.80mm, Support Customization.
Mini SIM Card Connector, Push-Push type, top Mount Height 1.80mm, Support Customization.Mini SIM Card Connector, Push-Push type, top Mount Height 1.80mm, Support Customization.
CategoriesMini SIM Card Connector
BrandMoarconn Card Connector Manufacturer
ModelSIM Card Connector(SM180-T1250-41-W)
Product Height1.85mm
Usable Memory CardSIM card
Base MaterialLCP
Terminals MaterialPhosphorous Bronze
Terms of PaymentL/C, D/A, D/P, Western Union
Update TimeDec 10,2024
Detail Information
Learn about Height 1.80mm Mini SIM Card Connector
Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector

1.27mm Pitch Mini SIM Card Connector, Top Mount SMT Type, wtih push-push structure, 1.85mm Height

Advantage:

1. Easily push-push Mini SIM card injection,Users can use it easily by pushing the Mini SIM card to insert and push it out.

2. Reliable Detection Switch, Supports hot plug function

3. Ultra-thin Design, Offers more interior space savings for customers' products.

4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."

5. Card polarization feature, Unique card socket design prevents improper card insertion.

Understand the Parameters of the Height 1.85mm Mini SIM Card Connector
Technical Parameters
Rating Current:
0.5A
Rating Voltage:
5.0 vrms
Contact Resistance:
100mΩ
Insulation Resistance:
500mΩ
Useful Life:
5000 Cycles
Additional Parameters
Transmission Rate:
N/A
Number of pins:
8
Number of interfaces:
1
Features:
Superb card locking function
Used for:
Tablet,Laptop,Smart Wearable,Smart Home,Automotive,Mobile Communication
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 1.80mm Mini SIM Card Connector
Mini SIM Card Connector
Application of Height 1.80mm Mini SIM Card Connector
sim card connector
Smart wearable
SIM card connector
Mobile Communication
SIM card connector
Smart Car
Instructions for Use of Height 1.80mm Mini SIM Card Connector
  • Step 1: Insert the Mini SIM Card
  • Locate the Mini SIM card connector: The Mini SIM card holder is usually located on the side of the device.
  • Insert the Mini SIM card: Place the Mini SIM card into the card connector, making sure that the gold finger of the Mini SIM card is facing down, and gently insert the tray with the Mini SIM card into the card holder.
  • Securing the Mini SIM Card: Gently push the edge of the card tray with your hand until the edge of the tray is flush with the faceplate of the device. At this point the card is secured and in the read state.
  • Step 2:Taking out the Mini SIM card
  • Before removing the Mini SIM card, make sure that the device has stopped using the card. On most devices, the card can be safely unmounted from the operating system to avoid data loss or corruption.
  • Remove the card safely by inserting a special thimble into the small hole in the card tray and pushing in gently so that the tray pops out automatically.
