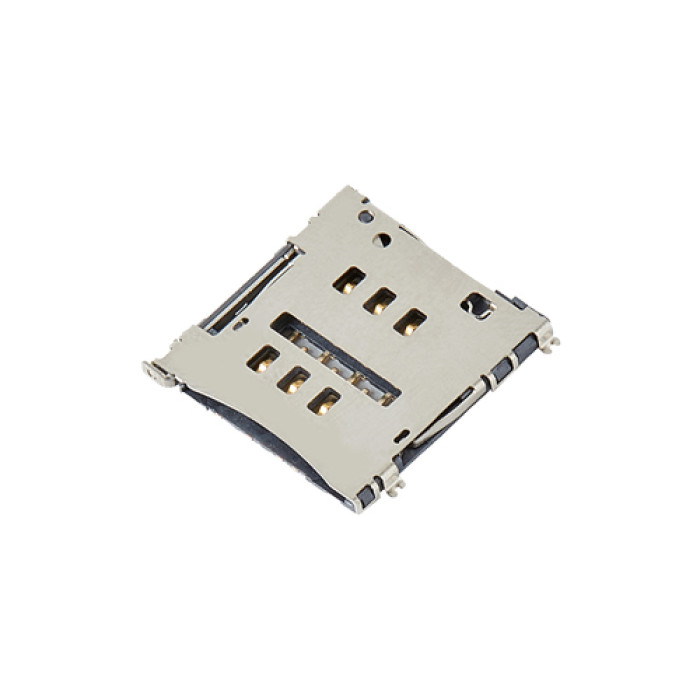

Micro SIM Card Connector With Tray Type Height 1.50mm
Micro SIM Card Connector With Tray Type Height 1.50mm
| Categories | Micro SIM Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | Micro SIM Card Connector（MS150-T1130-01）(SF58S006VBB) |
| Product Height | 1.50mm |
| Usable Memory Card | Micro SIM card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 5,2025 |
Detail Information
Learn about Height 1.50 mm Micro SIM Card Connector
Micro SIM Card Connector
1.27mm Pitch Micro SIM Card Connector, Top Mount SMT Type, Push-Push structure, 1.50mm Height
Advantage：
1. With a tray,can withstand random vibration to make sure that it is reliable connection.
2. Reliable detection switch pins, supports hot-plug function.
3. Ultra-thin design,offers more interior space for customers' products.
4. Slope-shaped terminal design, prevents terminal damage when the card is inserted and extracted.
Understand the Parameters of the Height 1.50 mm Micro SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication | |
Download
Detail Drawing of Height 1.50mm Micro SIM Card Connector
