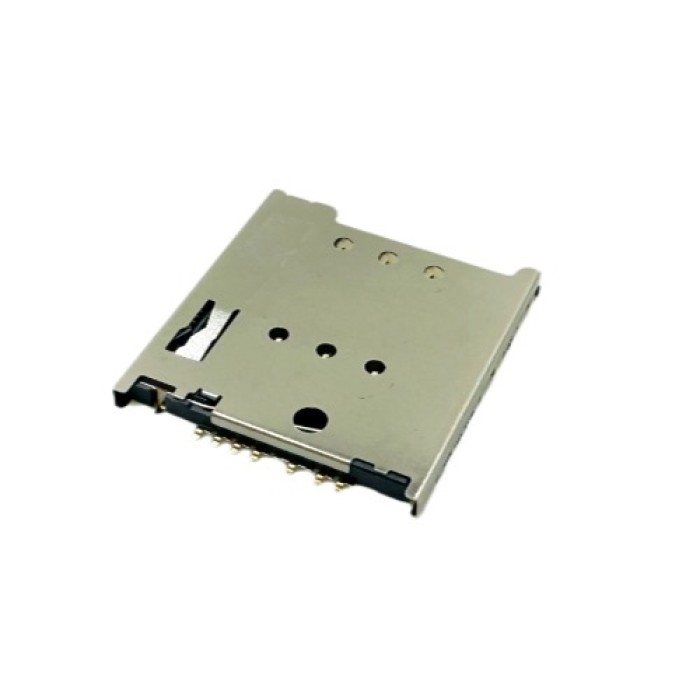

Micro SIM Card Connector Push-Push Height 1.42mm
Micro SIM Card Connector Push-Push Height 1.42mm
| Categories | Micro SIM Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | Micro SIM Card Connector (MS142-T6131-01-W) (5039600696) |
| Product Height | 1.42mm |
| Usable Memory Card | Micro SIM card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 9,2025 |
Detail Information
Learn about Height 1.42mm Micro SIM Card Connector
Micro SIM Card Connector
2.54mm Pitch Micro SIM Card Connector,Top Mount SMT Type,Hinge Structure, 1.42mm Height
Advantage：
1. Push-push structure design,easily insert or extract cards for users.
2. Reliable detection switch pins, supports hot-plug function.
3. Ultra-thin design,offers more interior space savings for customers' products.
4. Slope-shaped terminals design,prevent terminals damage when the card is inserted and extracted.
Understand the Parameters of the Height 1.42m Micro SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication | |
Download
Detail Drawing of Height 1.42mm Micro SIM Card Connector
