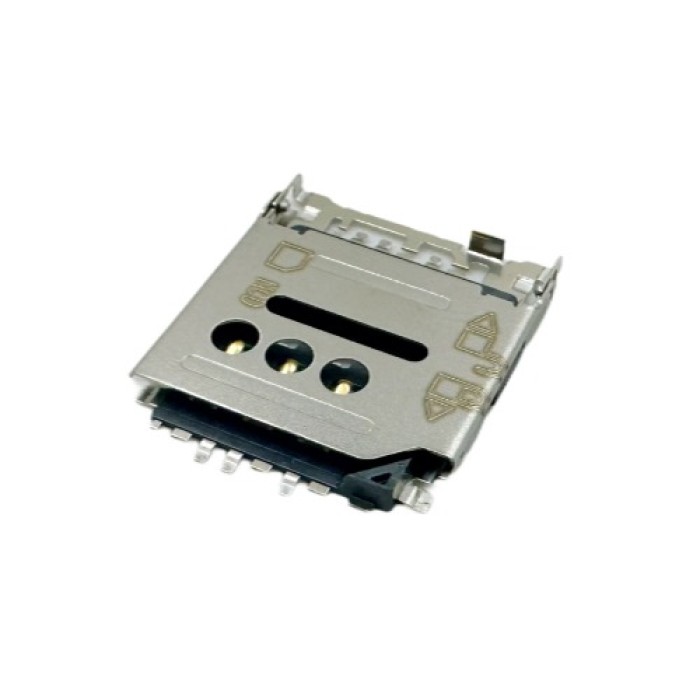

Micro SIM Card Connector Hinge Type Height 1.50mm
Micro SIM Card Connector Hinge Type Height 1.50mm
| Categories | Micro SIM Card Connector |
|---|---|
| Brand | Moarconn Card Connector Manufacturer |
| Model | Micro SIM Card Connector (MS150-T5200-01-W) (788000001) |
| Product Height | 1.50mm |
| Usable Memory Card | Micro SIM card |
| Base Material | LCP |
| Terminals Material | Phosphorous Bronze |
| Shell Material | Stainless Steel |
| Terms of Payment | L/C, D/A, D/P, Western Union |
| Download |  |
| Update Time | Jun 21,2025 |
Detail Information
Learn about Height 1.50mm Micro SIM Card Connector
Micro SIM Card Connector
2.54mm Pitch Micro SIM Card Connector,Top Mount SMT Type,Hinge Structure, 1.50mm Height
Advantage：
1. Hinge structure design,can better ensure the reliable connection for cards and teminals.
2. Stronger locking on card function,can keep better connection in the environment of random vibration.
3. Strict control coplanarity,make sure that it is better soldering performance.
4. Ultra-thin design,offer more interior space savings for customers' products.
Understand the Parameters of the Height 1.50m Micro SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication | |
Download
Detail Drawing of Height 1.50mm Micro SIM Card Connector
