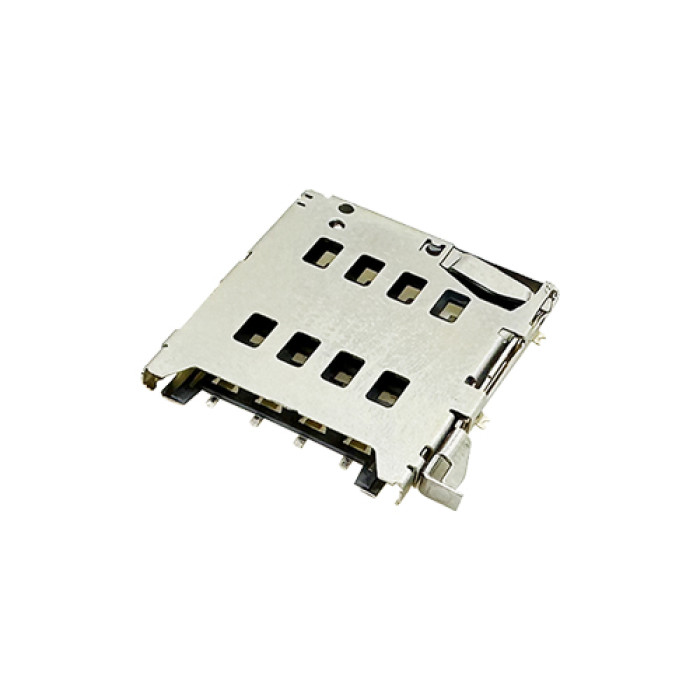

Micro SIM Card Connector, Top Mount Type, With Tray structure, Height 1.80mm, Support Customization.

Micro SIM Card Connector, Top Mount Type, With Tray structure, Height 1.80mm, Support Customization.

Micro SIM Card Connector, Top Mount Type, With Tray structure, Height 1.80mm, Support Customization.
Micro SIM Card Connector, Top Mount Type, With Tray structure, Height 1.80mm, Support Customization.Micro SIM Card Connector, Top Mount Type, With Tray structure, Height 1.80mm, Support Customization.
CategoriesMicro SIM Card Connector
BrandMoarconn Card Connector Manufacturer
ModelMicro SIM Card Connector(MS180-T1151-01)
Product Height1.80mm
Usable Memory CardMicro SIM card
Base MaterialLCP
Terminals MaterialPhosphorous Bronze
Shell MaterialStainless Steel
Terms of PaymentL/C, D/A, D/P, Western Union
Update TimeNov 5,2024
Detail Information

Learn about Height 1.80 mm Micro SIM Card Connector

Micro SIM Card Connector
Micro SIM Card Connector

2.54mm Pitch Micro SIM Card Connector, Top Mount SMT Type, With Tray structure, 1.80mm Height

Advantage:
1. Easily put Micros SIM card in the tray injection,Users can use it easily by pushing the tray with micro SIM card to insert and using pin pull it out.
2. Reliable Detection Switch, Supports hot plug function

3. Ultra-thin Design, Offers more interior space savings for customers' products.

4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted."

5. Card polarization feature, Unique card socket design prevents improper card insertion.


Understand the Parameters of the Height 1.80 mm Micro SIM Card Connector

Technical Parameters
Rating Current:
0.5 A
Rating Voltage:
30V AC
Contact Resistance:
100 mΩ Max
Insulation Resistance:
1000 MΩ Min
Useful Life:
5000 cycles
Additional Parameters
Transmission Rate:
N/A
Number of pins:
8
Number of interfaces:
1
Features:
Smart/Ultrathin
Used for:
Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication
Download
2D Drawing PDF

Data Sheet

Detail Drawing of Height 1.80mm Micro SIM Card Connector

Micro SIM socket card connector

Application of Height 1.80mm Micro SIM Card Connector

micro sim card connector
Mobile Communication
micro sim memory card connector
Smart Home
micro sim card connector
Laptop Computer

Instructions for Use of Height 1.80mm Micro SIM Card Connector

  • Step 1: Insert the Micro SIM Card
  • Locate the Micro SIM Card Connector: The Micro SIM card holder is usually located on the side of the device and usually has a small cover or exposed slot.
  • Insert the Micro SIM card: Ensure that the gold finger of the Micro SIMcard is facing down and aligned with the slot in the card holder, then gently insert the Micro SIM card into the holder.
  • Securing the Micro SIM Card: Push the card gently with your hand and release it when you hear a crisp click. This indicates that the card has been secured and is being read.
  • Step 2: Remove the Micro SIM Card
  • Before removing the Micro SIM card, make sure the device has stopped using the card. On most devices, the card can be safely unmounted from the operating system to avoid data loss or corruption.
  • Press the edge of the Micro SIM card and it will automatically eject so you can safely remove it.
