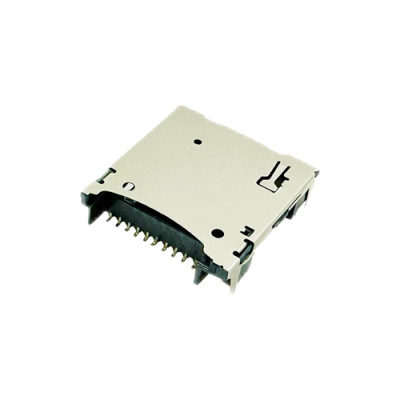

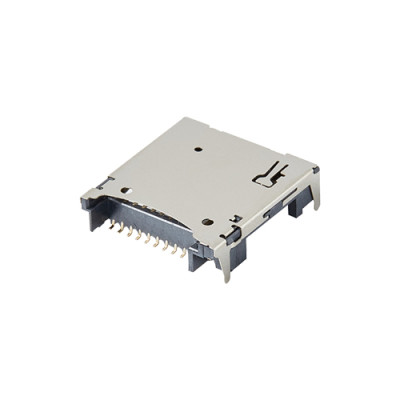

Micro SD Memory Card Connector Push-Push Top Mount Height 1.95mm

1.95mm Micro SD 3.0 card connector
Press to lock, press again to eject
A 1.10mm pitch, 8-pin Micro SD 3.0 card connector in a top mount, push-push design.
- 1.95mm mounted height
- 1.10mm terminal pitch
- 8 pins
- 10,000 cycles
Engineer reply within 1 working day · RoHS compliant · Custom options available
A card connector is invisible — until it fails
Connector failures are rarely dramatic. They are a few milliohms of drift, a lifted pad, a card that reads intermittently in a hot car.
The card jams or won't pop out after some use
The ejector is the part of a push-push socket that fails first. A reliable cam-and-spring design keeps every press stroke consistent for a crisp eject across 10,000 insertion cycles.
Data drops at speed, card not detected
Gold-plated terminals (≥0.025 µm) hold contact resistance to ≤30 mΩ with tight coplanarity control, keeping high-speed signals stable through humidity and thermal cycling.
Reflow warps the insulator, pads lift
An LCP insulator takes lead-free reflow without deformation; the stainless-steel shell keeps the frame flat; terminals are coplanarity-controlled to ±0.05 mm.
Card detection fails after a few insertions
A reliable detect switch guarantees card detection, backed by the retention structure, for 10,000 insertion cycles.
Every parameter, translated into a design decision
A datasheet lists values. A specification explains what each value controls. Final tolerances, plating thickness and acceptance criteria are confirmed on the 2D drawing and datasheet.
Mechanical
- Mounting type
- Top mount
- Mounted height
- 1.95mm
- Terminal pitch
- 1.10mm
- Number of pins
- 8
- Mechanism
- Push-push (ejector)
- Terminal coplanarity
- ±0.05 mm
Electrical
- Rated current
- 0.5 A
- Rated voltage
- 500 V
- Contact resistance
- ≤30 mΩ
- Insulation resistance
- 1,000 MΩ
- Transfer rate
- 104 MB/s
- Durability
- 10,000 cycles
Materials & plating
- Insulator
- LCP
- Terminals
- Phosphorous Bronze · gold ≥0.025 µm
- Shell
- Stainless Steel
- Process
- Lead-free reflow compatible
- Card type
- Micro SD 3.0 memory card / TF memory card
Environment & ordering
- Operating temperature
- -45 ~ 80°C
- RoHS
- Compliant
- Part number
- MC195-T1251-01
- Sampling lead time
- 7 days
- Sample policy
- Free samples
Four decisions that keep the card reading
Every structural decision keeps the card reading and held in place.

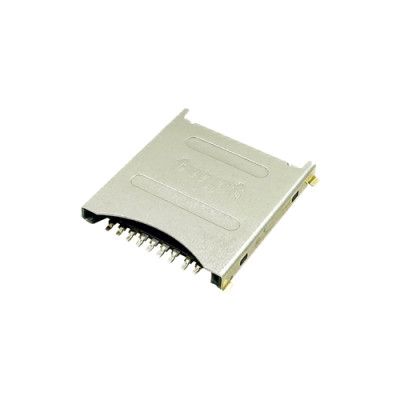

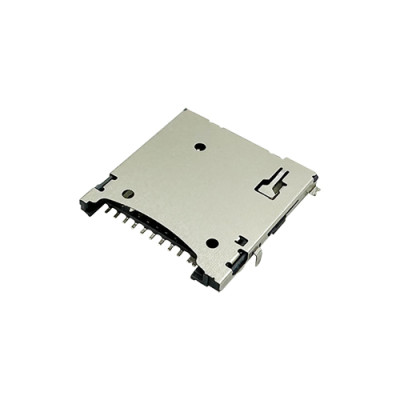

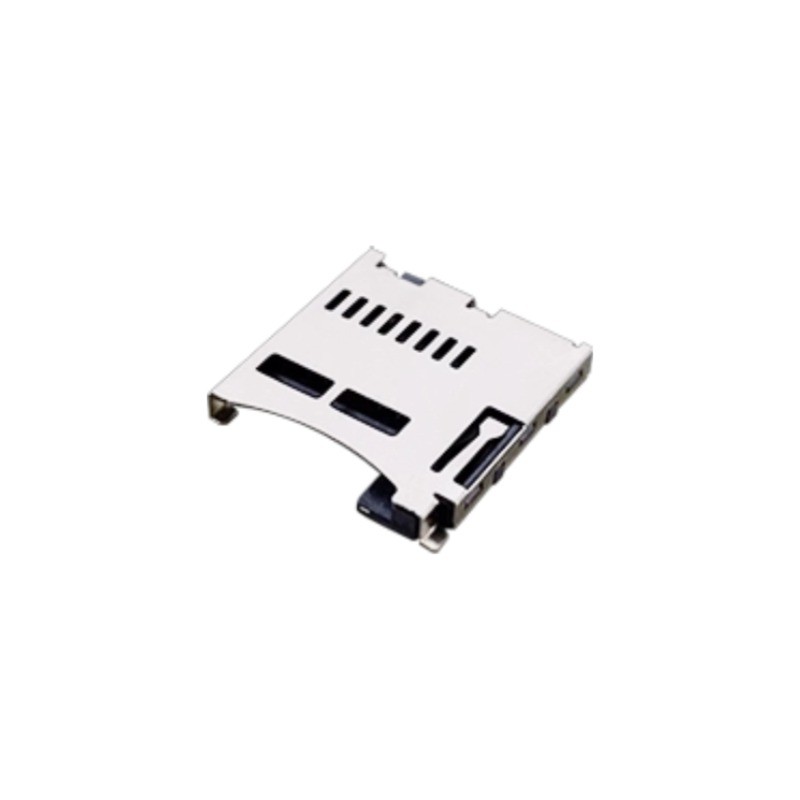

Same card, multiple mechanical answers
Same card, same interface — the family offers different height and mechanism combinations. Most mistakes are the right connector in the wrong stack-up.
| Model | Height | Mechanism | Mounting | Choose it when |
|---|---|---|---|---|
| TF115-T1251-01 | 1.15mm | Push-pull | Top mount | Push-pull |
| MS115-T7131-02 | 1.15mm | Push-pull | Top mount | Push-pull |
| TF128-T1151-02 | 1.28mm | Push-push | Top mount | Push-push |
| TF145-T1251-01 | 1.45mm | Push-push | Top mount | Push-push |
| MC175-T1250-01 | 1.75mm | Push-push | Top mount | Push-push |
| MC150-T1251-11 | 1.50mm | Push-push | Top mount | Push-push |
| MC150-T1250-21 | 1.50mm | Push-push | Top mount | Push-push |
| MS160-T1250-01 | 1.60mm | Push-push | Top mount | Push-push |
| MS135-T1230-51 | 1.75mm | Push-push | Top mount | Push-push |
| MC210-D1250-01 | 2.10mm | Push-push | Top mount | Push-push |
| MS230-T1250-01 | 2.30mm | Push-push | Top mount | Push-push |
| MC185-T1250-40 | 1.85mm | Push-push | Top mount | Push-push |
| MC180-T6230-01 | 1.80mm | Push-push | Top mount | Push-push |
| MC142-T5140-01 | 1.42mm | Push-pull | Top mount | Push-pull |
| MC265-T1151-01 | 2.65mm | Push-pull | Top mount | Push-pull |
| MC190-T1230-01 | 1.90mm | Hinge | Top mount | Hinge |
| MC195-T1251-01This page | 1.95mm | Push-push | Top mount | Push-push |
| UF160-T1131-11 | 1.60mm | Push-pull | Top mount | Push-pull |
Built for products that get carried, dropped and used daily
Wherever the card is a user-accessible medium, retention and contact stability matter more than price.
Everything your mechanical engineer needs
Frequently asked questions
What is the difference between Micro SD and standard SD sockets?
Micro SD sockets are smaller with fewer pins (8) for compact devices like phones and IoT; standard SD sockets fit cameras and laptops. The card types differ and are not interchangeable.
What is the difference between Micro SD 3.0 / 4.0 / 7.1?
Speed: Micro SD 3.0 (UHS-I) ~104 MB/s, 4.0 (UHS-II) ~312 MB/s, 7.1 (SD Express) up to ~2 GB/s. Higher speed demands more signal integrity.
Is it reflow compatible?
Yes. SMT sockets use an LCP insulator and coplanarity-controlled terminals for standard lead-free reflow; the exact profile is in the datasheet and drawing.
Can you cross-reference an imported brand?
Send the part number and drawing. We compare pad layout, height, pitch and retention, then confirm drop-in or layout-change before sampling.
What is the minimum order and lead time?
Samples are free, sampling takes 7 days, and volume production is 7–15 days. MOQ and lead time are confirmed with the quotation; zero-MOQ trial runs are available.
Send your stack-up. Get a drawing, a sample and a straight answer.
Tell us the product thickness, card type, annual volume and the part you are replacing (if any). An engineer replies within one working day with the right model, the drawing you need, and what we would change in your layout — if anything.
Mention part number MC195-T1251-01 for the fastest reply.
